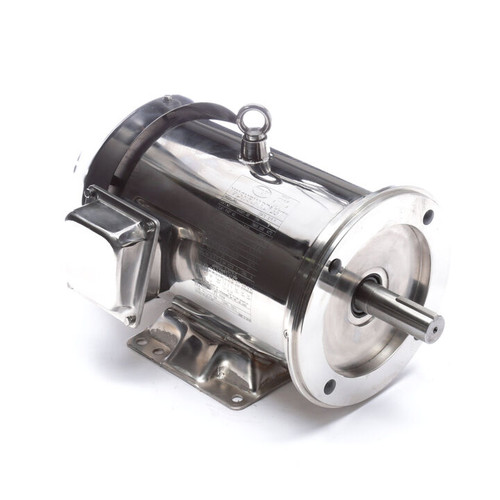

194012.00, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 284TC Frame, TEFC , SST Duckâ„¢ General Purpose Motor,C284T34WK1A

194012.00, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 284TC Frame, TEFC , SST Duckâ„¢ General Purpose Motor,C284T34WK1A

$6,218.34
(No reviews yet) Write a Review
SKU:
194012
Output HP:
25 & 20 Hp
Output KW:
18.7 & 14.9 kW
Voltage:
208-230/460 & 190/380 V
Phase:
3
Speed (RPM):
3550 & 2950 rpm
Frame Size:
284TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194012.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 25 & 20 Hp
Output KW: 18.7 & 14.9 kW Voltage: 208-230/460 & 190/380 V
Speed: 3550 & 2950 rpm Service Factor: 1.15 & 1.15
Frame: 284TC Thermal Protection: No Protection
Efficiency: 91.7 & 90.2 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 63-56.5/28.3 & 54.5/27.3 A
Power Factor: 89 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6310
Opp Drive End Bearing Size: 6212 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
