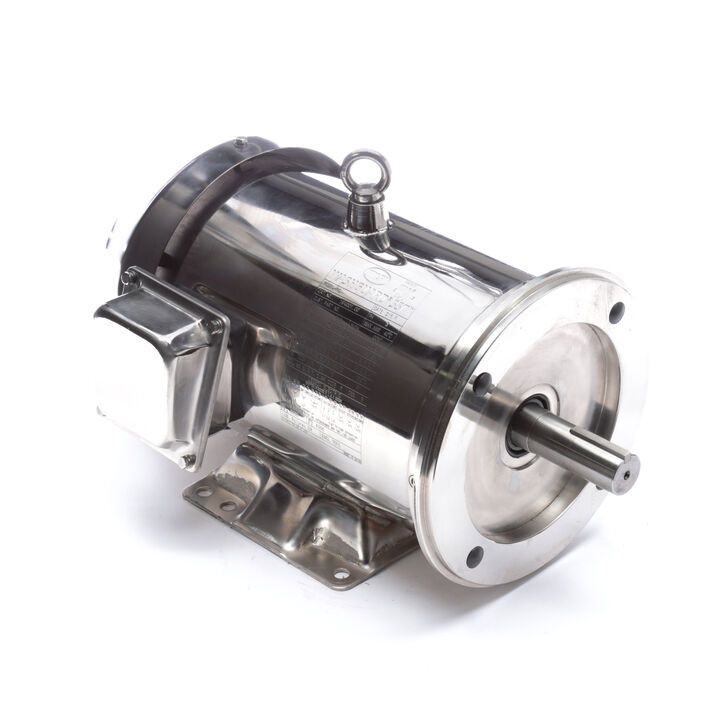

194014.00, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 286TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor,C286T34WK1A

194014.00, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 286TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor,C286T34WK1A

$6,309.23
(No reviews yet) Write a Review
SKU:
194014
Output HP:
30 & 25 Hp
Output KW:
22.4 & 18.7 kW
Voltage:
208-230/460 & 190/380 V
Phase:
3
Speed (RPM):
3550 & 2950 rpm
Frame Size:
286TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194014.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 30 & 25 Hp
Output KW: 22.4 & 18.7 kW Voltage: 208-230/460 & 190/380 V
Speed: 3550 & 2950 rpm Service Factor: 1.15 & 1.15
Frame: 286TC Thermal Protection: No Protection
Efficiency: 91.7 & 91.7 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 76-68/34 & 69/34.5 A
Power Factor: 90 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6310
Opp Drive End Bearing Size: 6212 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
