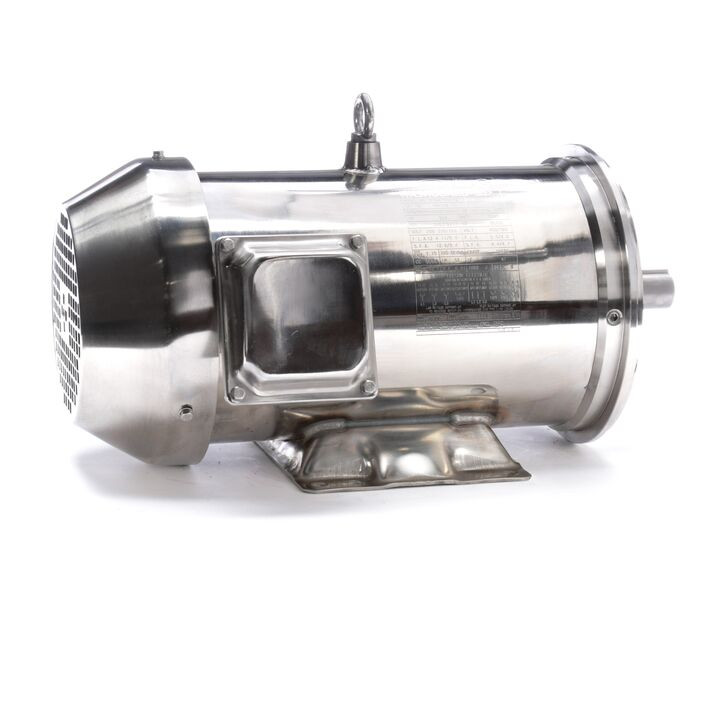

194002.00, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184TC Frame, TEFC - 194002.00, SST Duckâ„¢ General Purpose Motor,C184T34WK21A

194002.00, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184TC Frame, TEFC - 194002.00, SST Duckâ„¢ General Purpose Motor,C184T34WK21A

$1,712.88
(No reviews yet) Write a Review
SKU:
194002
Output HP:
5 & 3 Hp
Output KW:
3.7 & 2.2 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
3520 & 2900 rpm
Frame Size:
184TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194002.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 5 & 3 Hp
Output KW: 3.7 & 2.2 kW Voltage: 230/460 & 190/380 V
Speed: 3520 & 2900 rpm Service Factor: 1.15 & 1.15
Frame: 184TC Thermal Protection: No Protection
Efficiency: 88.5 & 87.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 11.0/5.5 & 8.0/4.0 A
Power Factor: 93 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: J Drive End Bearing Size: 6306
Opp Drive End Bearing Size: 6306 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
