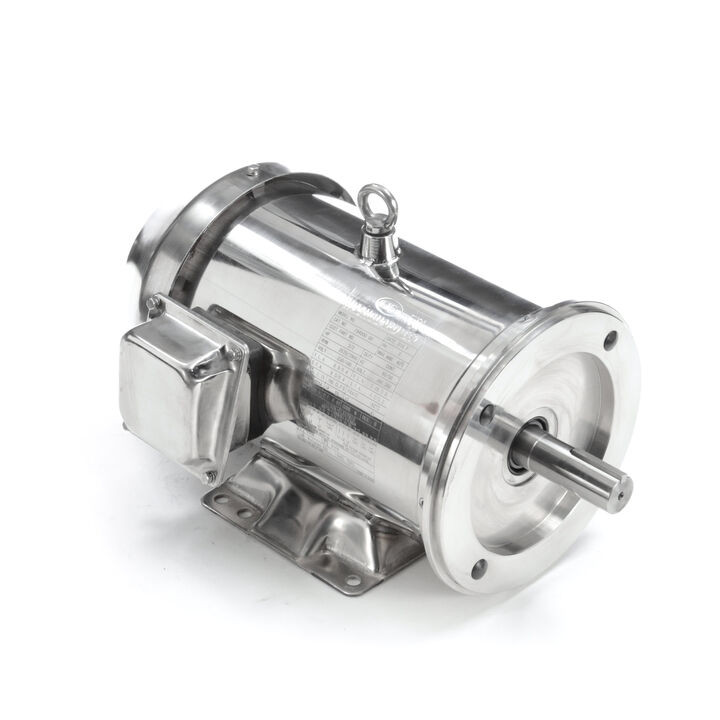

194004.00, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213TC Frame, TEFC - 194004.00, SST Duckâ„¢ General Purpose Motor,C213T34WK9A

194004.00, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213TC Frame, TEFC - 194004.00, SST Duckâ„¢ General Purpose Motor,C213T34WK9A

$2,501.00
(No reviews yet) Write a Review
SKU:
194004
Output HP:
7.5 & 5 Hp
Output KW:
5.6 & 3.7 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
3520 & 2940 rpm
Frame Size:
213TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194004.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 5 Hp
Output KW: 5.6 & 3.7 kW Voltage: 230/460 & 190/380 V
Speed: 3520 & 2940 rpm Service Factor: 1.15 & 1.15
Frame: 213TC Thermal Protection: No Protection
Efficiency: 89.5 & 91 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 17.4/8.7 & 14.2/7.1 A
Power Factor: 89 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6306
Opp Drive End Bearing Size: 6306 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
