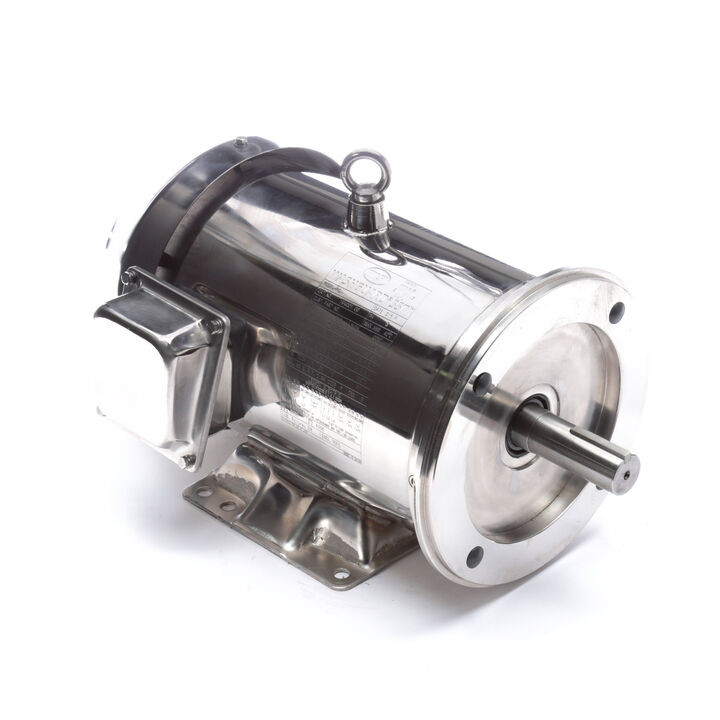

194008.00, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 254TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor, C254T34WK1AA

194008.00, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 3600 & 3000 RPM, 254TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor, C254T34WK1AA

$4,593.30
(No reviews yet) Write a Review
SKU:
194008
Output HP:
15 & 10 Hp
Output KW:
11.2 & 7.5 kW
Voltage:
208-230/460 & 190/380 V
Phase:
3
Speed (RPM):
3550 & 2950 rpm
Frame Size:
254TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194008.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 15 & 10 Hp
Output KW: 11.2 & 7.5 kW Voltage: 208-230/460 & 190/380 V
Speed: 3550 & 2950 rpm Service Factor: 1.15 & 1.15
Frame: 254TC Thermal Protection: No Protection
Efficiency: 91 & 91 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 38-34.5/17.2 & 27.6/13.8 A
Power Factor: 90 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
