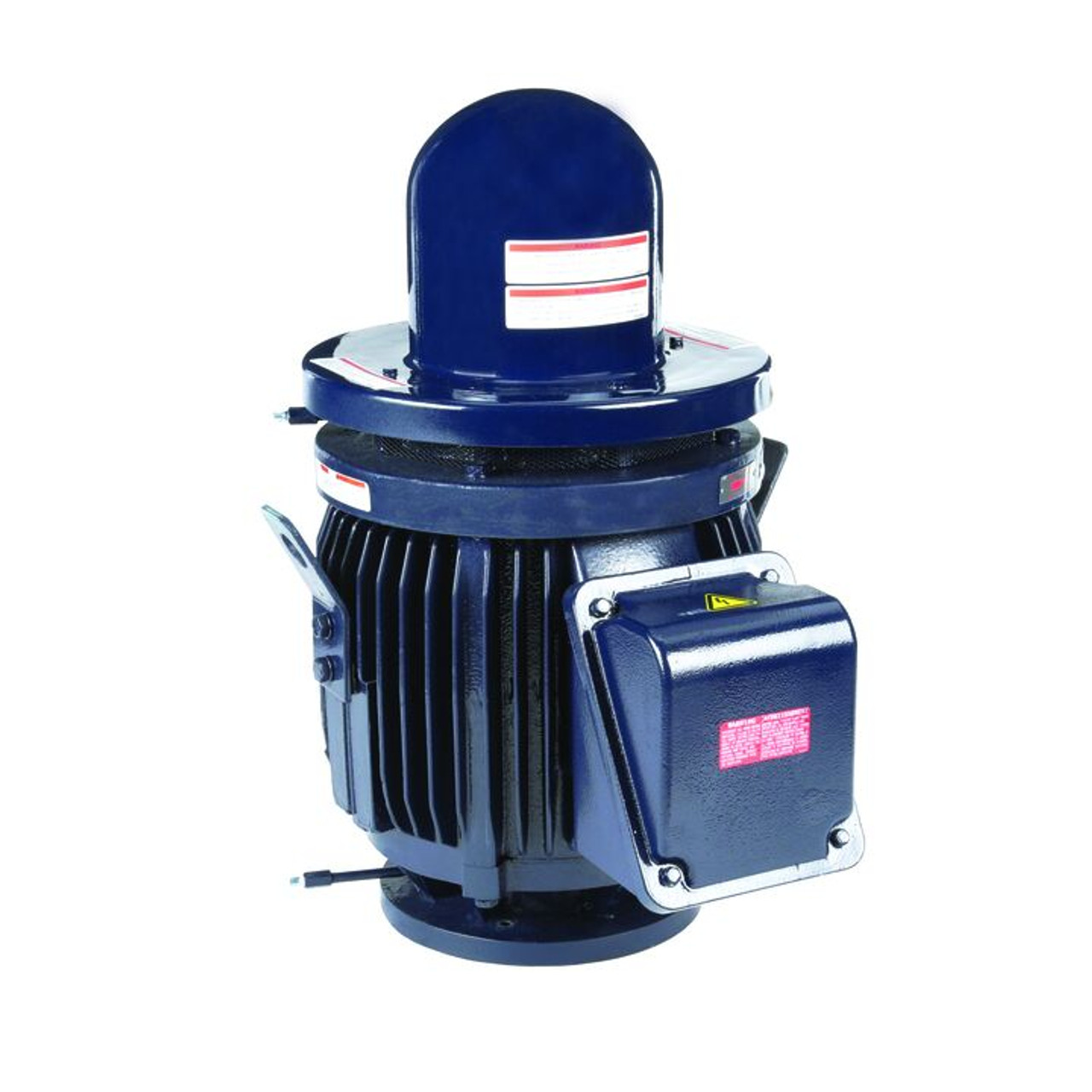

V008A, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 364TPV Frame, WPI, Vertical Pump Motor, 364VTDC6026

V008A, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 364TPV Frame, WPI, Vertical Pump Motor, 364VTDC6026

$13,859.00
(No reviews yet) Write a Review
SKU:
V008A
Output HP:
60 Hp
Output KW:
45 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1780 rpm
Frame Size:
364TPV
Mounting:
Round
Enclosure:
Weather Protected 1
Product Drawings1:
V008A.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 60 & 50 Hp
Output KW: 45.0 & 37.0 kW Voltage: 230/460 & 190/380 V
Speed: 1780 & 1480 rpm Service Factor: 1.15 & 1.15
Frame: 364TPV Thermal Protection: No Protection
Efficiency: 95 & 94.1 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 150/75 & 154/77 A
Power Factor: 79 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6313
Opp Drive End Bearing Size: 7219B Enclosure: Weather Protected 1
UL: Recognized CSA: Y
CE: Y IP Code: 23
Number of Speeds: 1
!
