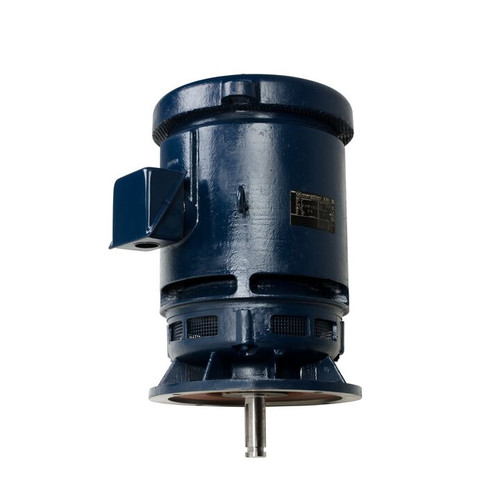

M738, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 364HPV Frame, DP, Vertical Pump Motor, 364TTDS16052

M738, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 364HPV Frame, DP, Vertical Pump Motor, 364TTDS16052

$6,497.11
(No reviews yet) Write a Review
SKU:
M738
Output HP:
60 Hp
Output KW:
45 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1782 rpm
Frame Size:
364HPV
Mounting:
Round
Enclosure:
Drip Proof
Product Drawings1:
M738.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 60 & 50 Hp
Output KW: 45.0 & 37.0 kW Voltage: 230/460 & 190/380 V
Speed: 1782 & 1482 rpm Service Factor: 1.15 & 1.15
Frame: 364HPV Thermal Protection: No Protection
Efficiency: 95 & 94.1 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 139/69.5 & 140/70 A
Power Factor: 85 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 7312 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
