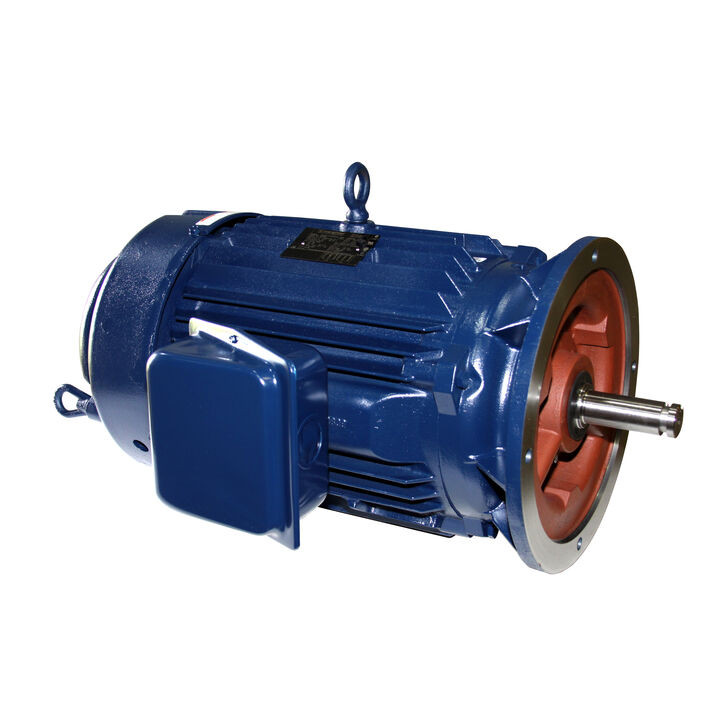

M909B, 50 & 40 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 326HPV Frame, TEFC, Vertical Pump Motor, 326TTFS16037

M909B, 50 & 40 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 326HPV Frame, TEFC, Vertical Pump Motor, 326TTFS16037

$6,100.61
(No reviews yet) Write a Review
SKU:
M909B
Output HP:
50 Hp
Output KW:
37 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1775 rpm
Frame Size:
326HPV
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
M909B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 50 & 40 Hp
Output KW: 37.0 & 30.0 kW Voltage: 230/460 & 190/380 V
Speed: 1775 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 326HPV Thermal Protection: No Protection
Efficiency: 94.5 & 94.1 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 120/60 & 118/59 A
Power Factor: 82 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: F Drive End Bearing Size: 311
Opp Drive End Bearing Size: 311 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1



!
