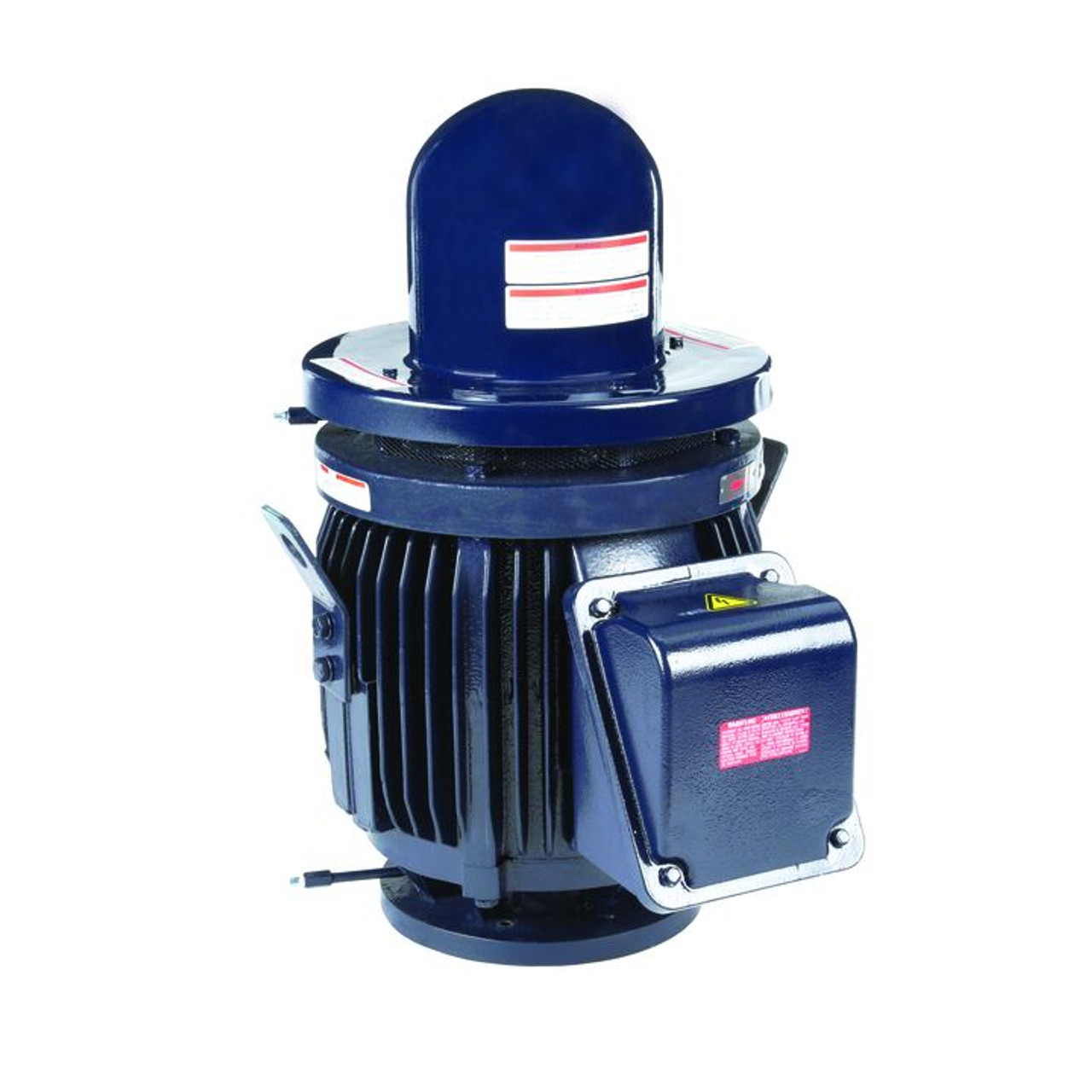

V006A, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 324TPV Frame, WPI, Vertical Pump Motor, 324VTDC6026

V006A, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 324TPV Frame, WPI, Vertical Pump Motor, 324VTDC6026

$10,223.00
(No reviews yet) Write a Review
SKU:
V006A
Output HP:
40 Hp
Output KW:
30 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1775 rpm
Frame Size:
324TPV
Mounting:
Round
Enclosure:
Weather Protected 1
Product Drawings1:
V006A.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 40 & 30 Hp
Output KW: 30.0 & 22.4 kW Voltage: 230/460 & 190/380 V
Speed: 1775 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 324TPV Thermal Protection: No Protection
Efficiency: 94.8 & 93.6 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 96.5/48 & 90/45 A
Power Factor: 82 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 7219B Enclosure: Weather Protected 1
UL: Recognized CSA: Y
CE: Y IP Code: 23
Number of Speeds: 1



!
