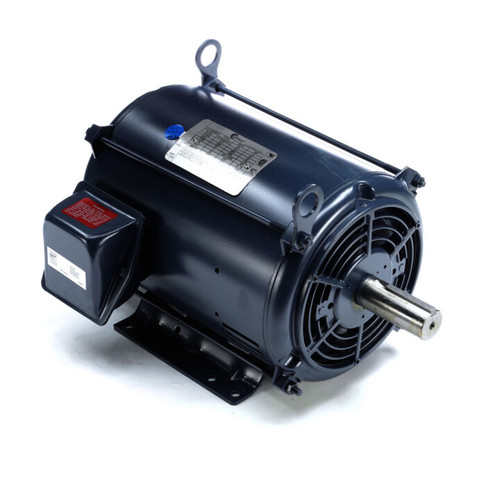

U874B, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286T Frame, TEFC, XRI퉌¬-SD Severe Duty Motor, 286TTFCD16572

U874B, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286T Frame, TEFC, XRI퉌¬-SD Severe Duty Motor, 286TTFCD16572

Marathon Electric

$3,490.71
(No reviews yet) Write a Review
SKU:
U874B
Output HP:
30 Hp
Output KW:
22.4 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1770 rpm
Frame Size:
286T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
U874B.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 30 & 25 Hp
Output KW: 22.4 & 18.7 kW Voltage: 230/460 & 190/380 V
Speed: 1770 & 1470 rpm Service Factor: 1.15 & 1.15
Frame: 286T Thermal Protection: No Protection
Efficiency: 93.6 & 92.7 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 71/35.5 & 72/36 A
Power Factor: 84 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
