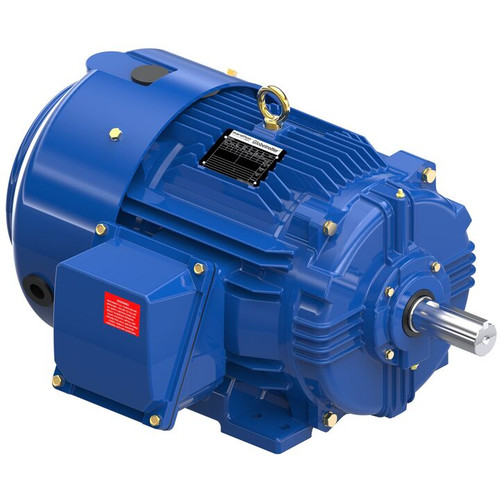

U872B, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256T Frame, TEFC, XRI퉌¬-SD Severe Duty Motor, 256TTFCD16574

U872B, 20 & 15 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 256T Frame, TEFC, XRI퉌¬-SD Severe Duty Motor, 256TTFCD16574

Marathon Electric

$2,524.02
(No reviews yet) Write a Review
SKU:
U872B
Output HP:
20 Hp
Output KW:
14.9 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1768 rpm
Frame Size:
256T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
U872B.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 20 & 15 Hp
Output KW: 14.9 & 11.2 kW Voltage: 230/460 & 190/380 V
Speed: 1768 & 1472 rpm Service Factor: 1.15 & 1.15
Frame: 256T Thermal Protection: No Protection
Efficiency: 93 & 92.7 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 48.5/24.2 & 44.5/22.3 A
Power Factor: 83.5 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6209 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
