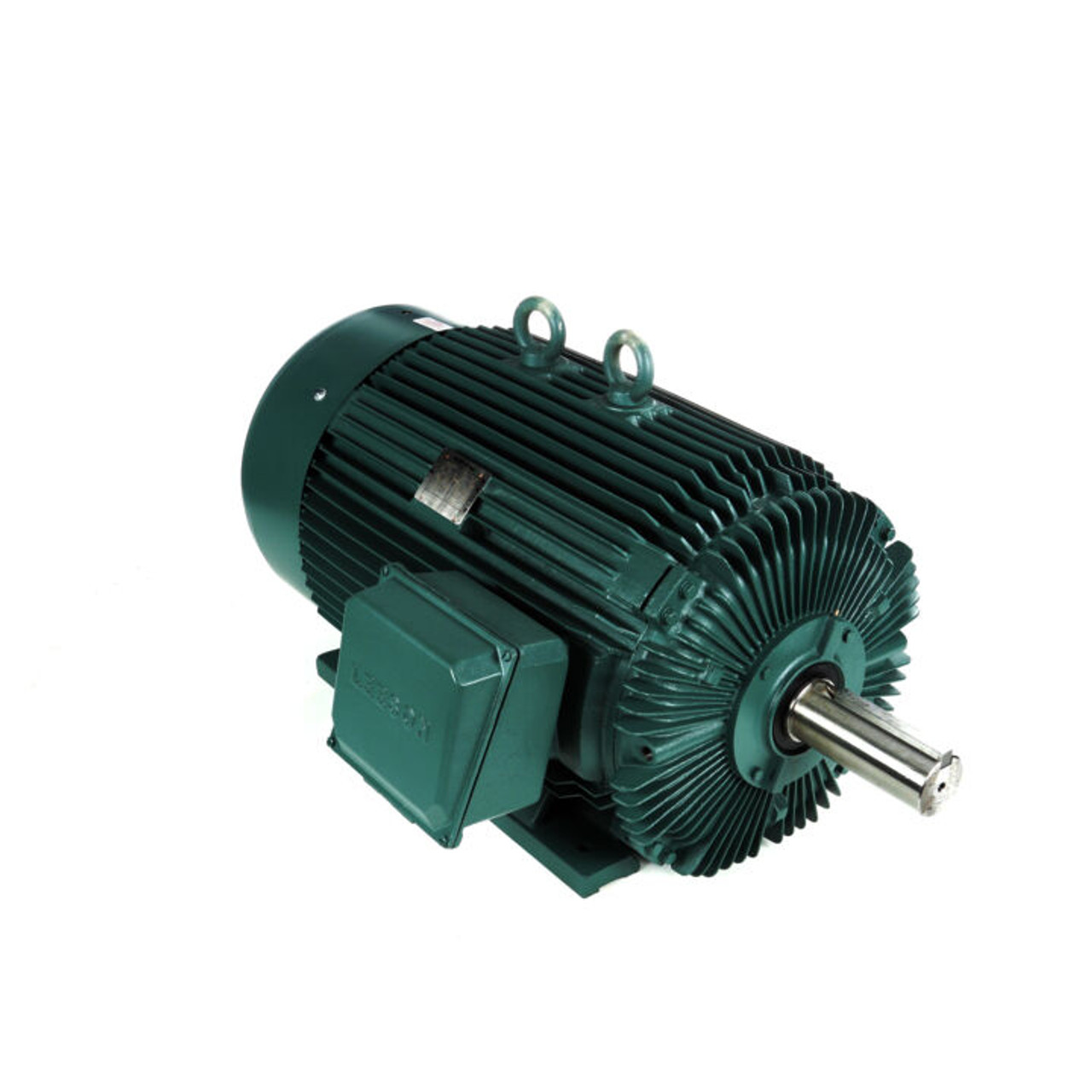

U871B, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254T Frame, TEFC, XRI퉌¬-SD Severe Duty Motor, 254TTFCD16568

U871B, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 254T Frame, TEFC, XRI퉌¬-SD Severe Duty Motor, 254TTFCD16568

Marathon Electric

$2,092.77
(No reviews yet) Write a Review
SKU:
U871B
Output HP:
15 Hp
Output KW:
11.2 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1770 rpm
Frame Size:
254T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
U871b.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 15 & 10 Hp
Output KW: 11.2 & 7.5 kW Voltage: 230/460 & 190/380 V
Speed: 1770 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 254T Thermal Protection: No Protection
Efficiency: 92.4 & 91.8 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 36.5/18.4 & 31/15.5 A
Power Factor: 83 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6209 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
