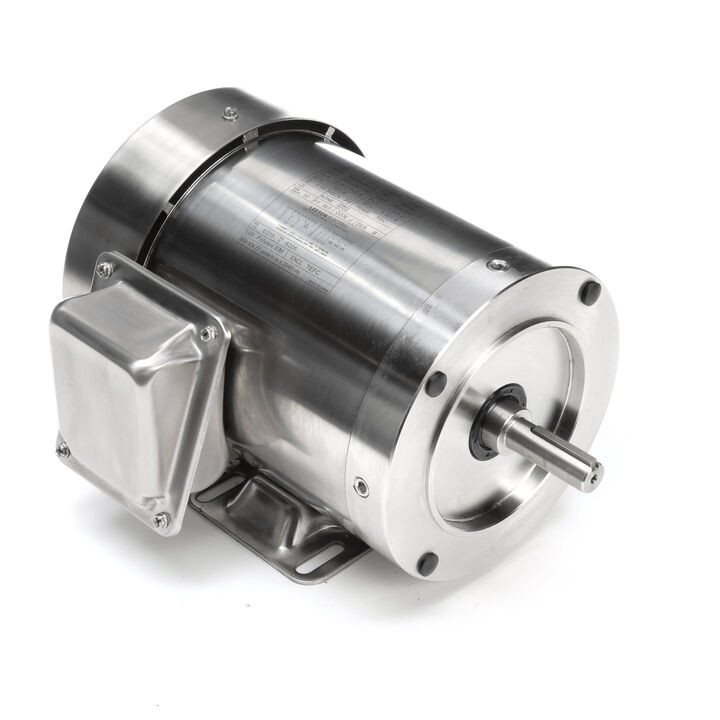

194104.00, 5 HP, 3 Ph, 60 Hz, 575 V, 3600 RPM, 184TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor,C184T34FK1A

194104.00, 5 HP, 3 Ph, 60 Hz, 575 V, 3600 RPM, 184TC Frame, TEFC, SST Duckâ„¢ General Purpose Motor,C184T34FK1A

$1,712.88
(No reviews yet) Write a Review
SKU:
194104
Output HP:
5 Hp
Output KW:
3.7 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
3550 rpm
Frame Size:
184TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
194104.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 5 Hp
Output KW: 3.7 kW Voltage: 575 V
Speed: 3550 rpm Service Factor: 1.15
Frame: 184TC Thermal Protection: No Protection
Efficiency: 88.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 4.4 A
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Drive End Bearing Size: 6306 Opp Drive End Bearing Size: 6306
Enclosure: Totally Enclosed Fan Cooled UL: Recognized
CSA: Y CE: Y
IP Code: 55 Number of Speeds: 1



!
