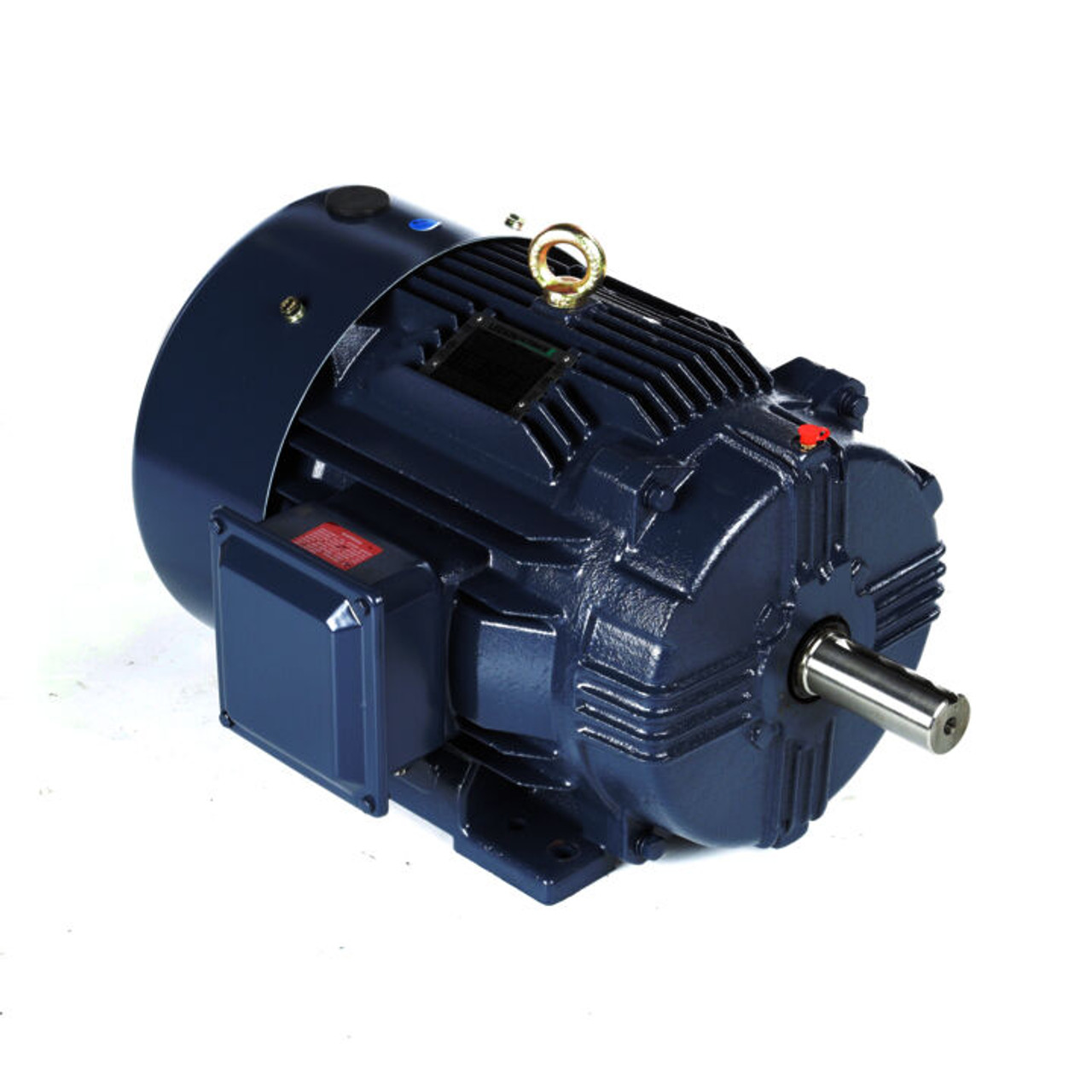

141273.00, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 213JM Frame, TEFC, Washdown Pump Motor, C213T17WK18A

141273.00, 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 213JM Frame, TEFC, Washdown Pump Motor, C213T17WK18A

$2,597.38
(No reviews yet) Write a Review
SKU:
141273
Output HP:
7.50 & 5 Hp
Output KW:
5.6 & 3.7 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1765 & 1475 rpm
Frame Size:
213JM
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
141273.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 5 Hp
Output KW: 5.6 & 3.7 kW Voltage: 230/460 & 190/380 V
Speed: 1765 & 1475 rpm Service Factor: 1.15 & 1.15
Frame: 213JM Thermal Protection: No Protection
Efficiency: 91.7 & 90.2 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 19.6/9.8 & 16.6/8.3 A
Power Factor: 78.3 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6209
Opp Drive End Bearing Size: 6207 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1



!
