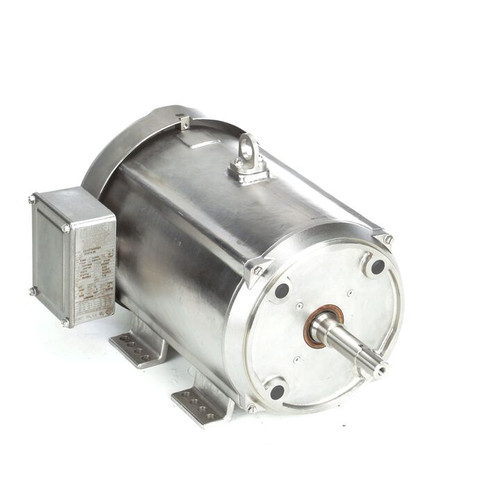

141274.00 , 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213JM Frame, TEFC, Washdown Pump Motor, C213T34WK8A

141274.00 , 7.50 & 5 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 213JM Frame, TEFC, Washdown Pump Motor, C213T34WK8A

$2,656.55
(No reviews yet) Write a Review
SKU:
141274
Output HP:
7.50 & 5 Hp
Output KW:
5.6 & 3.7 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
3525 & 2945 rpm
Frame Size:
213JM
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
141274.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 5 Hp
Output KW: 5.6 & 3.7 kW Voltage: 230/460 & 190/380 V
Speed: 3525 & 2945 rpm Service Factor: 1.15 & 1.15
Frame: 213JM Thermal Protection: No Protection
Efficiency: 89.5 & 88.5 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 18.6/9.3 & 16/8 A
Power Factor: 84.6 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6209
Opp Drive End Bearing Size: 6207 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
