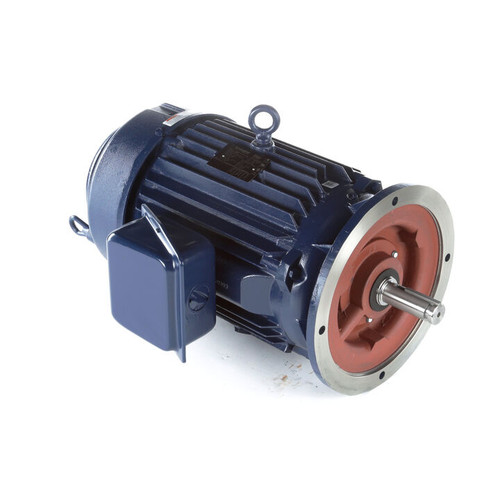

M910B, 50 & 40 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 365HPV Frame, TEFC, Vertical Pump Motor, 365TTFS16088

M910B, 50 & 40 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 365HPV Frame, TEFC, Vertical Pump Motor, 365TTFS16088

$10,980.61
(No reviews yet) Write a Review
SKU:
M910B
Output HP:
50 Hp
Output KW:
37 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1182 rpm
Frame Size:
365HPV
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
M910B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 50 & 40 Hp
Output KW: 37.0 & 30.0 kW Voltage: 230/460 & 190/380 V
Speed: 1182 & 982 rpm Service Factor: 1.15 & 1.15
Frame: 365HPV Thermal Protection: No Protection
Efficiency: 94.5 & 93.6 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 123/61.5 & 121/60.5 A
Power Factor: 80.5 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6312 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1
!
