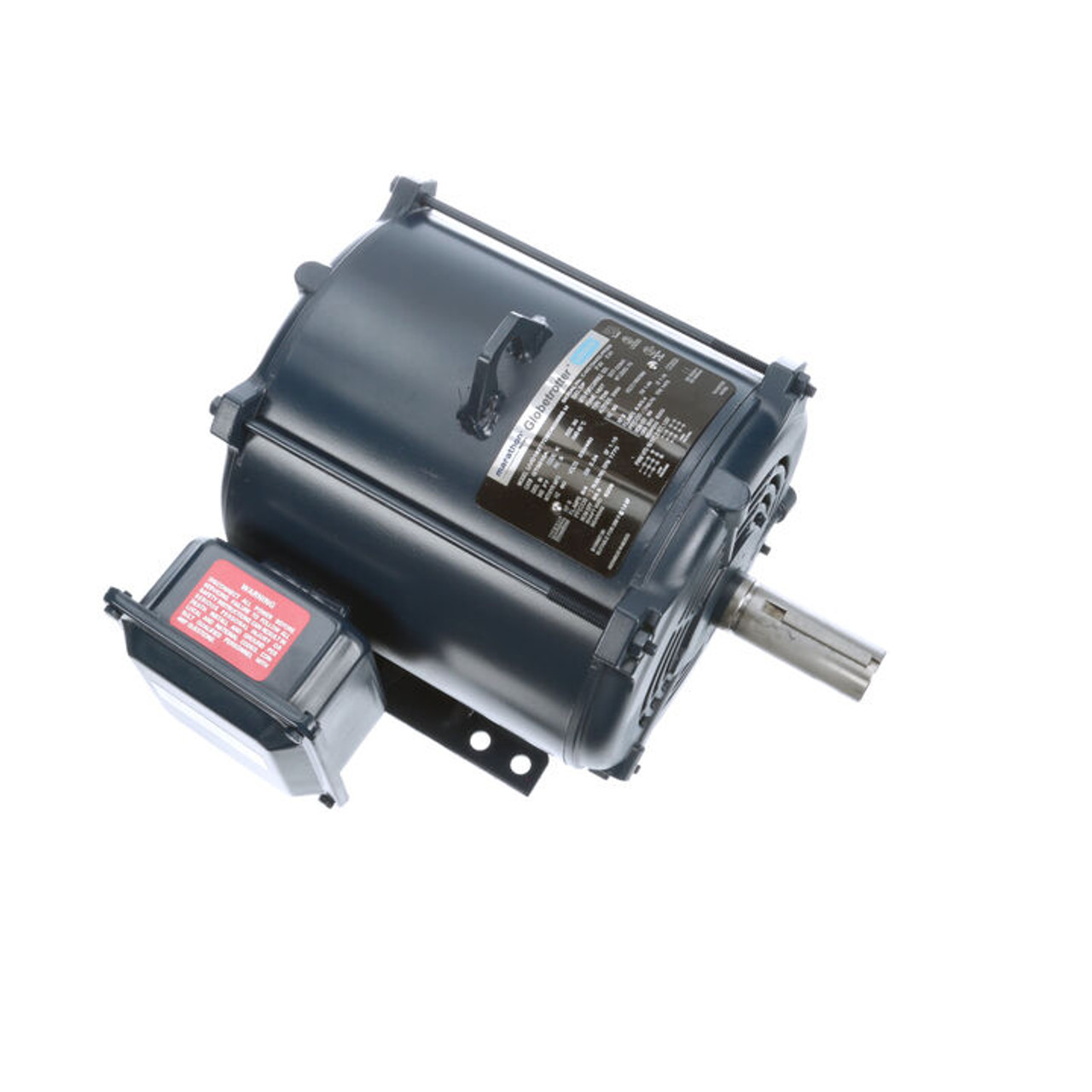

M907B, 40 HP, 3 Ph, 60 Hz, 230/460 V, 900 & 900 RPM, 365HPV Frame, TEFC, Vertical Pump Motor, 365TTFS16105

M907B, 40 HP, 3 Ph, 60 Hz, 230/460 V, 900 & 900 RPM, 365HPV Frame, TEFC, Vertical Pump Motor, 365TTFS16105

$12,164.62
(No reviews yet) Write a Review
SKU:
M907B
Output HP:
40 Hp
Output KW:
30 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
875 rpm
Frame Size:
365HPV
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
M907B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 40 Hp
Output KW: 30 kW Voltage: 230/460 V
Speed: 875 rpm Service Factor: 1.15
Frame: 365HPV Thermal Protection: No Protection
Efficiency: 91.7 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 106.0/53.0 A
Power Factor: 77 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6312 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1
!
