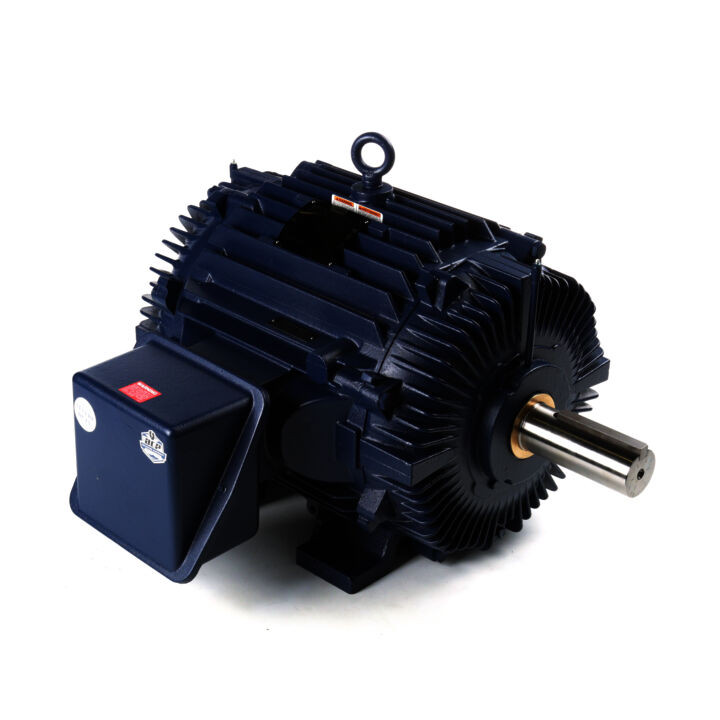

824564.00, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 404T Frame, TEAO, Severe Duty Motor, 404TTTS16576AN

824564.00, 60 & 50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 404T Frame, TEAO, Severe Duty Motor, 404TTTS16576AN

$10,088.18
(No reviews yet) Write a Review
SKU:
824564
Output HP:
60 & 50 Hp
Output KW:
45.0 & 37.0 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1185 & 985 rpm
Frame Size:
404T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Air Over
Product Drawings1:
824564.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 60 & 50 Hp
Output KW: 45.0 & 37.0 kW Voltage: 230/460 & 190/380 V
Speed: 1185 & 985 rpm Service Factor: 1.15 & 1.0
Frame: 404T Thermal Protection: Thermostat
Efficiency: 94.5 & 94.1 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 144/72 & 144/72 A
Power Factor: 83 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6316
Opp Drive End Bearing Size: 6313 Enclosure: Totally Enclosed Air Over
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1



!
