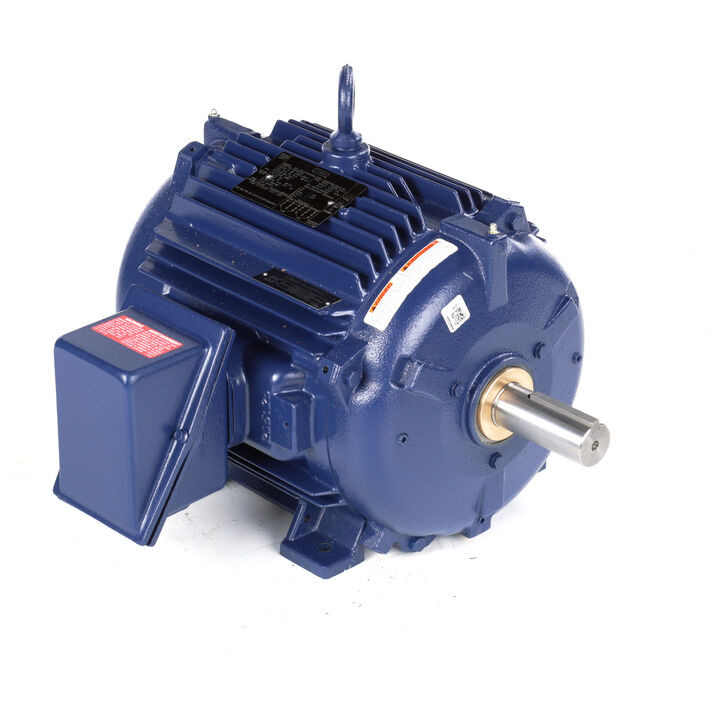

824557.00 , 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 256TV Frame, TEAO, Severe Duty Motor, 256TTTNA16577AA

824557.00 , 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 256TV Frame, TEAO, Severe Duty Motor, 256TTTNA16577AA

$2,377.78
(No reviews yet) Write a Review
SKU:
824557
Output HP:
10 & 7.5 Hp
Output KW:
7.5 & 5.6 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1176 & 975 rpm
Frame Size:
256TV
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Air Over
Product Drawings1:
824557.00pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 & 7.50 Hp
Output KW: 7.5 & 5.6 kW Voltage: 230/460 & 190/380 V
Speed: 1176 & 975 rpm Service Factor: 1.15 & 1.0
Frame: 256TV Thermal Protection: No Protection
Efficiency: 91 & 90.2 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 26.2/13.1 & 23/11.5 A
Power Factor: 79 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6210 Enclosure: Totally Enclosed Air Over
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
