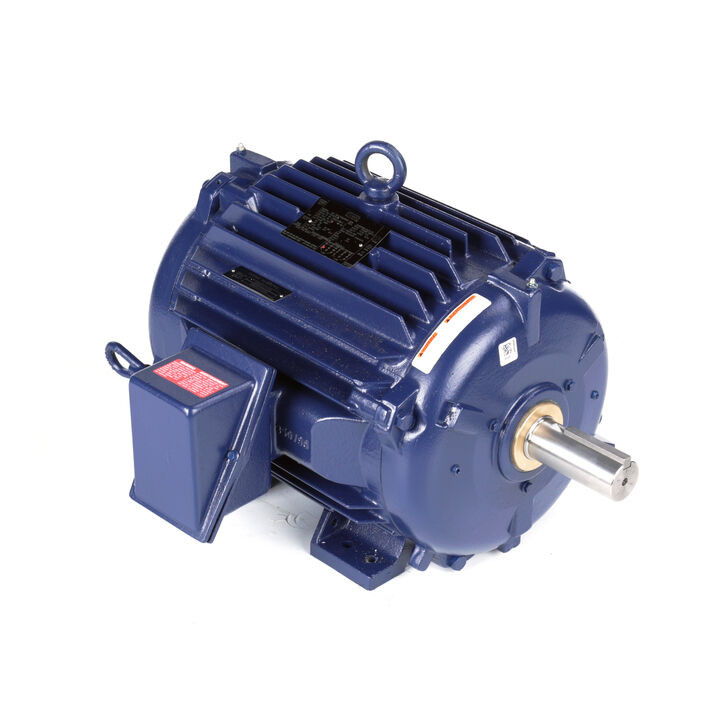

824559.00, 20 & 16 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 286TV Frame, TEAO, Severe Duty Motor,286TTTNA16576AA

824559.00, 20 & 16 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1200 & 1000 RPM, 286TV Frame, TEAO, Severe Duty Motor,286TTTNA16576AA

$2,808.44
(No reviews yet) Write a Review
SKU:
824559
Output HP:
20 & 16 Hp
Output KW:
14.9 & 11.9 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1175 & 975 rpm
Frame Size:
286TV
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Air Over
Product Drawings1:
824559.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 20 & 16 Hp
Output KW: 14.9 & 11.9 kW Voltage: 230/460 & 190/380 V
Speed: 1175 & 975 rpm Service Factor: 1.15 & 1.0
Frame: 286TV Thermal Protection: No Protection
Efficiency: 91.7 & 91 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 53.5/26.8 & 54/27 A
Power Factor: 76 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6210 Enclosure: Totally Enclosed Air Over
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1
!
