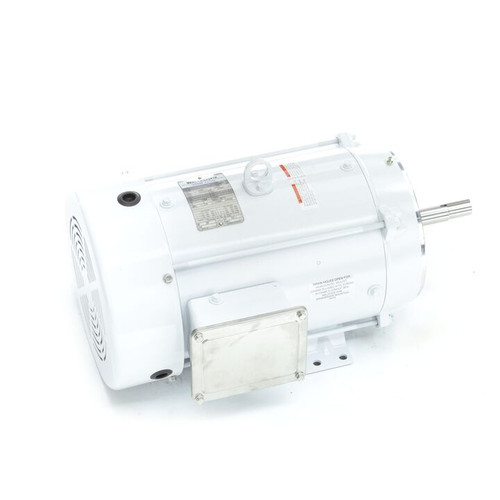

141358.00, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 215JM Frame, TEFC, Washdown Pump Motor, C215T34WK19A

141358.00, 15 & 10 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 215JM Frame, TEFC, Washdown Pump Motor, C215T34WK19A

$2,286.89
(No reviews yet) Write a Review
SKU:
141358
Output HP:
15 & 10 Hp
Output KW:
11.2 & 7.5 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
3495 & 2930 rpm
Frame Size:
215JM
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
141358.00.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 15 & 10 Hp
Output KW: 11.2 & 7.5 kW Voltage: 230/460 & 190/380 V
Speed: 3495 & 2930 rpm Service Factor: 1.15 & 1.15
Frame: 215JM Thermal Protection: No Protection
Efficiency: 91 & 91 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 35/17.6 & 29/14.5 A
Power Factor: 89 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6206 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
