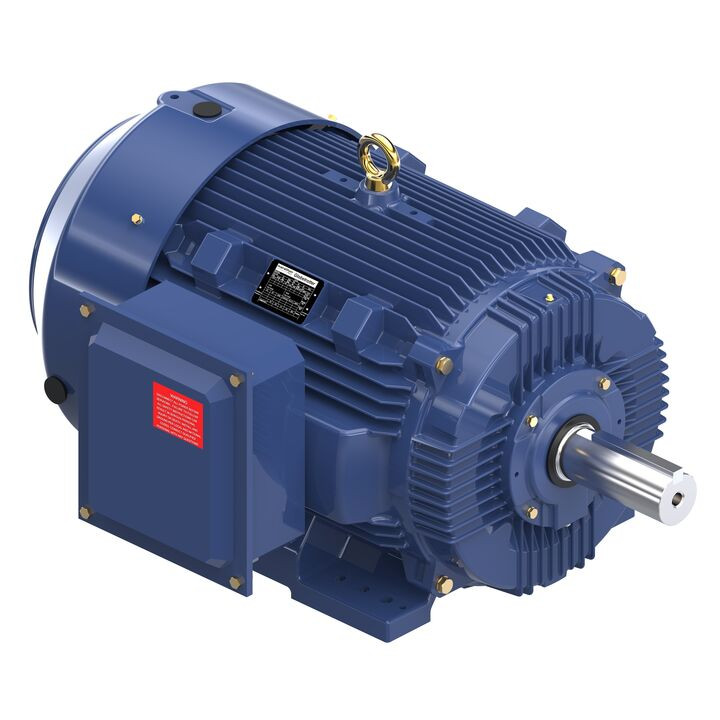

Y576A, 125 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 444T Frame, TEFC, Blue Max퉌¬ Inverter Duty Encoder Motor, 444THFCD8036

Y576A, 125 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 444T Frame, TEFC, Blue Max퉌¬ Inverter Duty Encoder Motor, 444THFCD8036

Marathon Electric

$23,916.78
(No reviews yet) Write a Review
SKU:
Y576A
Output HP:
125 Hp
Output KW:
93 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1785 rpm
Frame Size:
444T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
Y576A.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 125 Hp
Output KW: 93 kW Voltage: 460 V
Speed: 1785 rpm Service Factor: 1
Frame: 444T Thermal Protection: Thermostat
Efficiency: 95 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 135 A
Power Factor: 90 Duty: Continuous
Insulation Class: H Design Code: INV
KVA Code: H Drive End Bearing Size: 6319
Opp Drive End Bearing Size: 6317 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
