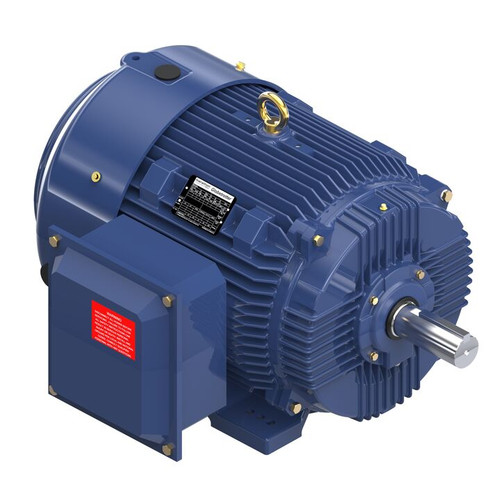

Y573A, 60 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 364T Frame, TEFC, Blue Max® Inverter Duty Encoder Motor, 364THFCD8036

Y573A, 60 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 364T Frame, TEFC, Blue Max® Inverter Duty Encoder Motor, 364THFCD8036

$9,900.30
(No reviews yet) Write a Review
SKU:
Y573A
Output HP:
60 Hp
Output KW:
45 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1785 rpm
Frame Size:
364T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
Y573A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 60 Hp
Output KW: 45 kW Voltage: 230/460 V
Speed: 1785 rpm Service Factor: 1
Frame: 364T Thermal Protection: Thermostat
Efficiency: 95 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 135.0/67.5 A
Power Factor: 87.5 Duty: Continuous
Insulation Class: H Design Code: INV
KVA Code: K Drive End Bearing Size: 6313
Opp Drive End Bearing Size: 6213 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
