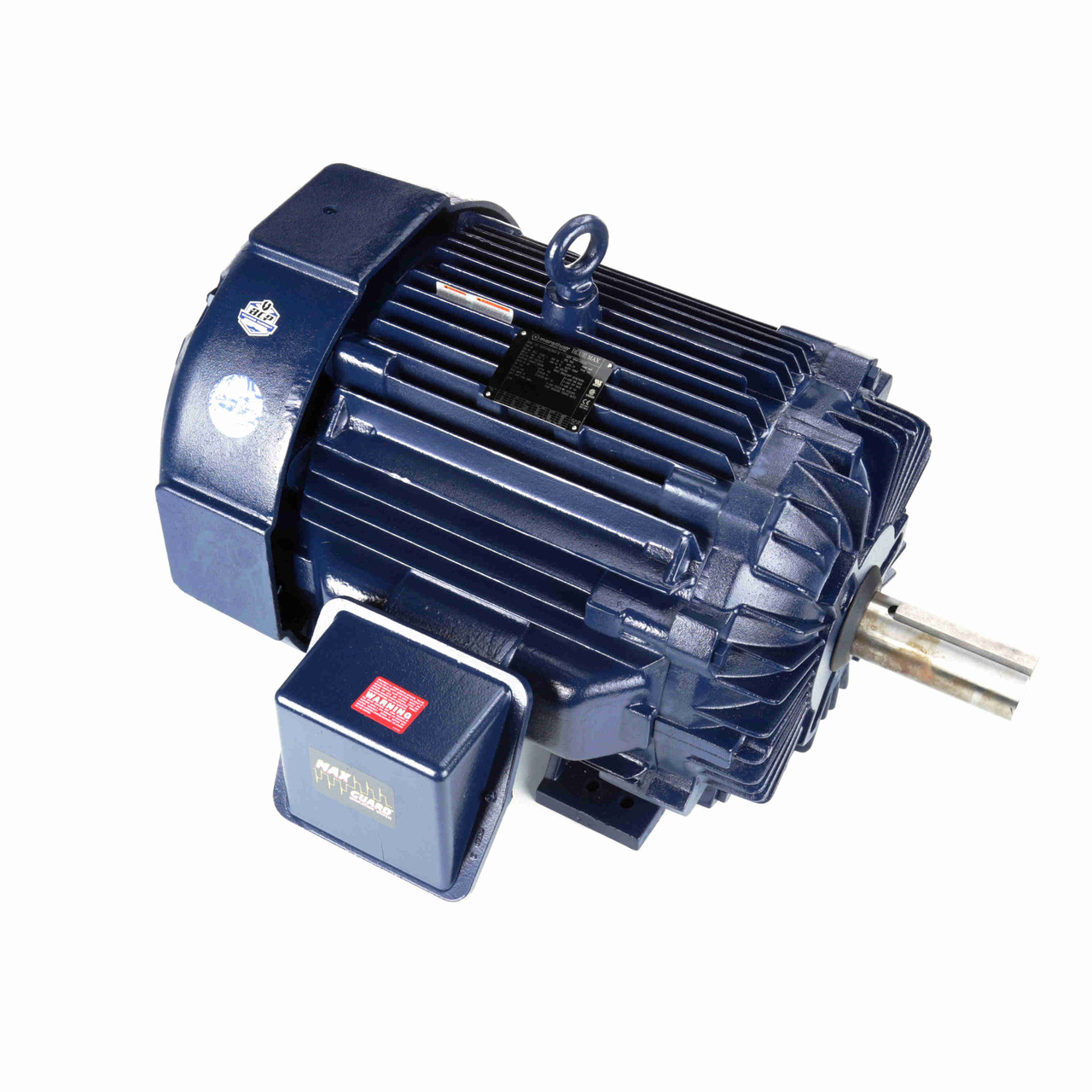

Y576, 125 Hp, 1800 Rpm, 444T FR, 460 V, TEFC, Rigid Base, Inverter Duty, Blue Max 2000, 444THFN8036.

Y576, 125 Hp, 1800 Rpm, 444T FR, 460 V, TEFC, Rigid Base, Inverter Duty, Blue Max 2000, 444THFN8036.

Marathon Electric

$23,916.78
(No reviews yet) Write a Review
SKU:
Y576
Output HP:
125 Hp
Output KW:
93 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1788 rpm
Frame Size:
444T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
Y576.pdf
Manufacture:
Marathon
MAP Policy:
Yes
Adding to cart… The item has been added

Add to Cart for Discount

Nameplate Specifications

Phase: 3 Output HP: 125 Hp
Output KW: 93.0 kW Voltage: 460 V
Speed: 1788 rpm Service Factor: 1
Frame: 444T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermostat Efficiency: 94.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 143.0 A Power Factor: 87
Duty: Continuous Insulation Class: H
Design Code: INV KVA Code: J
Drive End Bearing Size: 6318 Opp Drive End Bearing Size: 6316
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1
!
