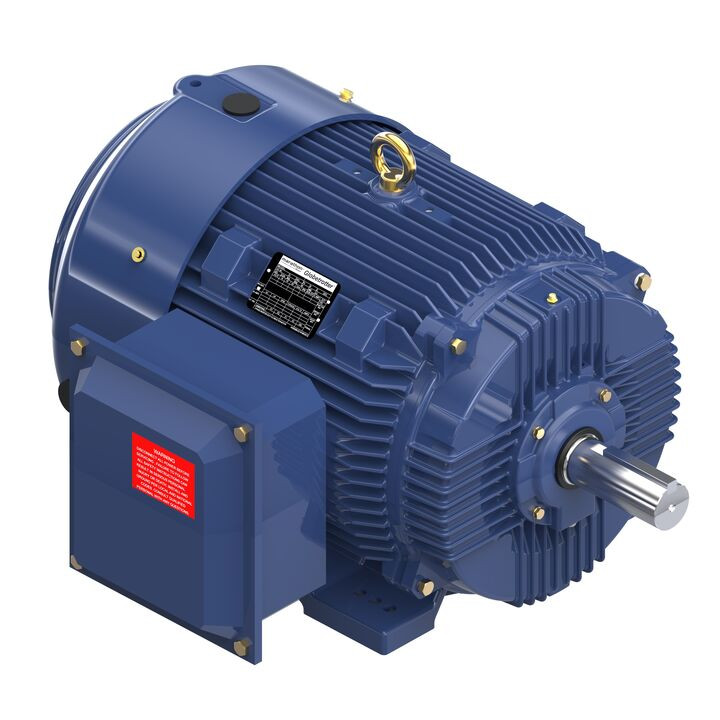

Y574A, 75 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 365T Frame, TEFC, Blue Max® Inverter Duty Encoder Motor, 365THFCD8036

Y574A, 75 HP, 3 Ph, 60 Hz, 230/460 V, 1800 RPM, 365T Frame, TEFC, Blue Max® Inverter Duty Encoder Motor, 365THFCD8036

$11,213.63
(No reviews yet) Write a Review
SKU:
Y574A
Output HP:
75 Hp
Output KW:
56 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1785 rpm
Frame Size:
365T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
Y574A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 75 Hp
Output KW: 56 kW Voltage: 230/460 V
Speed: 1785 rpm Service Factor: 1
Frame: 365T Thermal Protection: Thermostat
Efficiency: 95.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 170.0/85.0 A
Power Factor: 87.2 Duty: Continuous
Insulation Class: H Design Code: INV
KVA Code: L Drive End Bearing Size: 6313
Opp Drive End Bearing Size: 6213 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1
!
