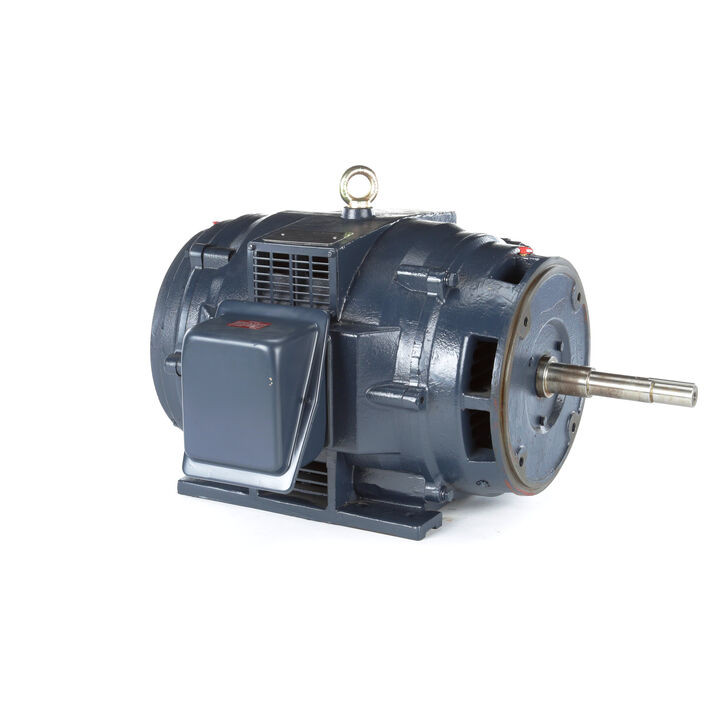

Y1616, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 324TS Frame, TEFC, Fire Pump Motor, 324TSTFPA14010

Y1616, 40 & 30 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 324TS Frame, TEFC, Fire Pump Motor, 324TSTFPA14010

$3,395.87
(No reviews yet) Write a Review
SKU:
Y1616
Output HP:
40 Hp
Output KW:
30 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3545 rpm
Frame Size:
324TS
Mounting:
Rigid Base
Enclosure:
TEFC
Product Drawings1:
Y1616.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 40 & 30 Hp
Output KW: 30.0 & 22.4 kW Voltage: 230/460 & 190/380 V
Speed: 3545 & 2948 rpm Service Factor: 1.15 & 1.15
Frame: 324TS Thermal Protection: No Protection
Efficiency: 91.7 & 91.7 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 92/46 & 83/41.5 A
Power Factor: 88 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6311 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1



!
