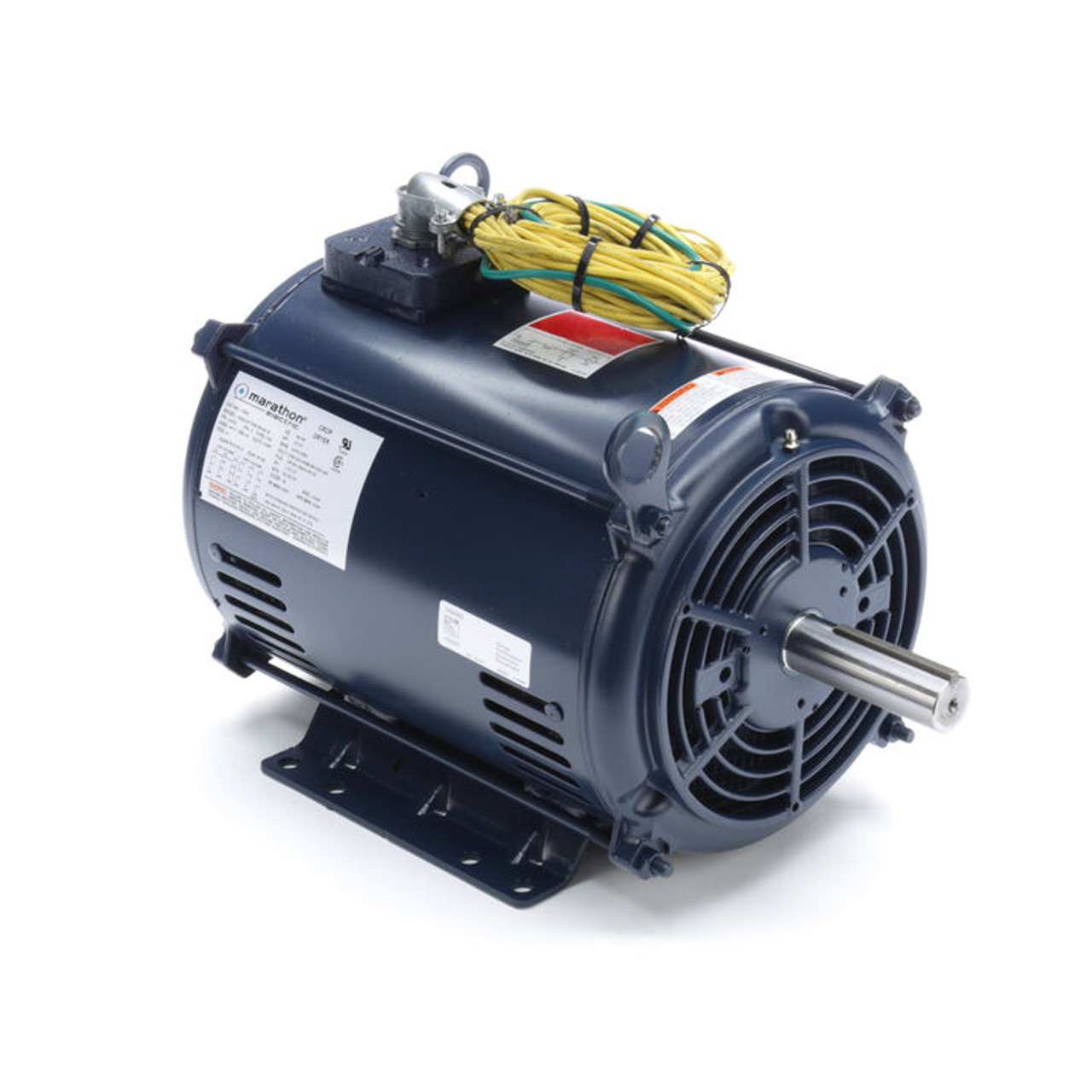

Y1614, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 286TS Frame, TEFC, Fire Pump Motor, 286TSTFPA14006

Y1614, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 286TS Frame, TEFC, Fire Pump Motor, 286TSTFPA14006

$2,859.07
(No reviews yet) Write a Review
SKU:
Y1614
Output HP:
30 Hp
Output KW:
22.4 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3518 rpm
Frame Size:
286TS
Mounting:
Rigid Base
Enclosure:
TEFC
Product Drawings1:
Y1614.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 30 & 25 Hp
Output KW: 22.4 & 18.7 kW Voltage: 230/460 & 190/380 V
Speed: 3518 & 2915 rpm Service Factor: 1.15 & 1.15
Frame: 286TS Thermal Protection: No Protection
Efficiency: 91 & 90.2 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 69/34.5 & 71/35.5 A
Power Factor: 88.5 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: F Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6210 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1



!
