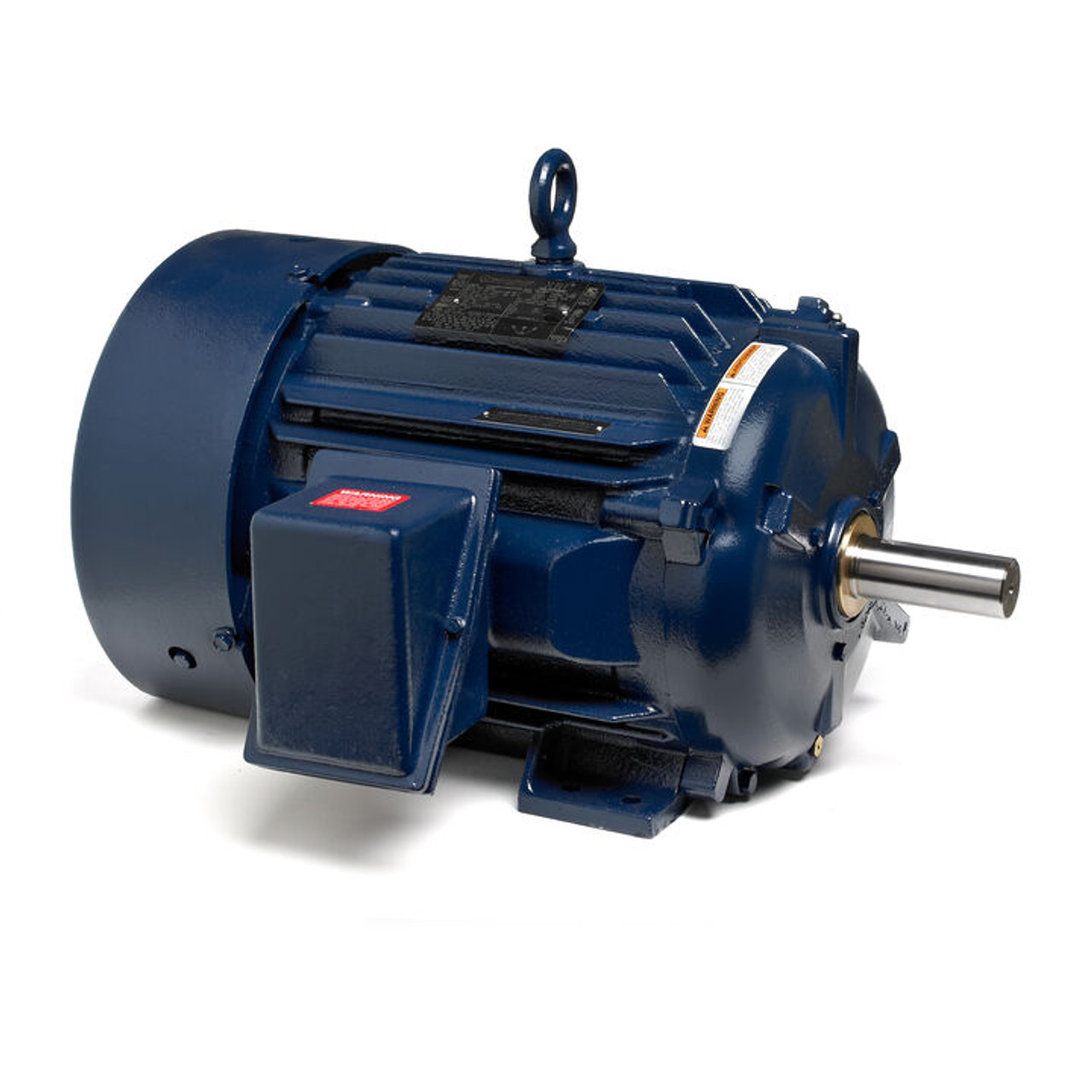

W686, 75 HP, 3 Ph, 60 Hz, 575 V, 1200 RPM, 405T Frame, TEFC, XRI®-841 Severe Duty Motor, 405THFS19081

W686, 75 HP, 3 Ph, 60 Hz, 575 V, 1200 RPM, 405T Frame, TEFC, XRI®-841 Severe Duty Motor, 405THFS19081

$10,972.68
(No reviews yet) Write a Review
SKU:
W686
Output HP:
75 Hp
Output KW:
56 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
1185 rpm
Frame Size:
405T
Mounting:
Rigid Base
Enclosure:
TEFC
Product Drawings1:
W686.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 75 Hp
Output KW: 56 kW Voltage: 575 V
Speed: 1185 rpm Service Factor: 1.15
Frame: 405T Thermal Protection: No Protection
Efficiency: 94.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 72 A
Power Factor: 83 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6316
Opp Drive End Bearing Size: 6313 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1



!
