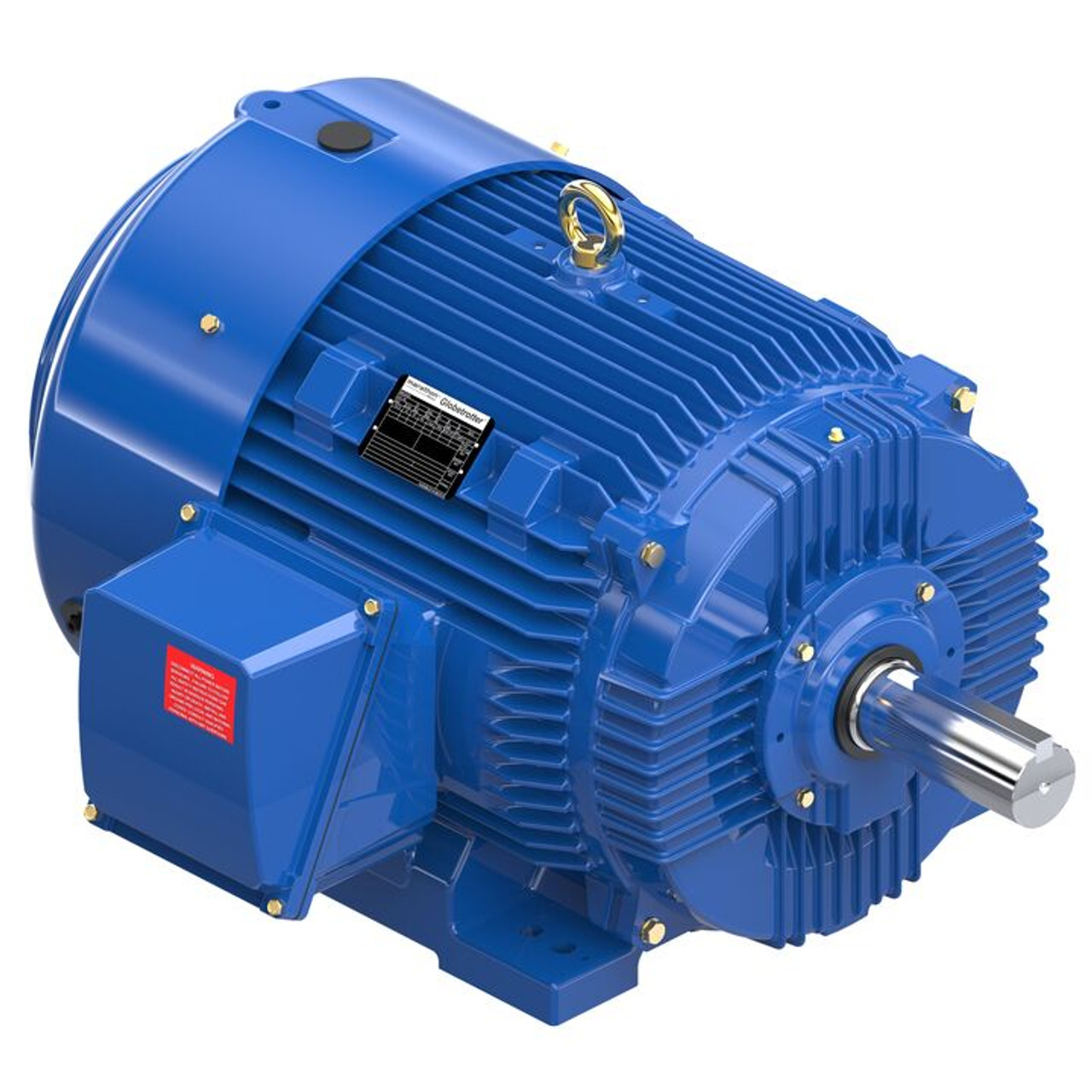

W600A, 100 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 405T Frame, TEFC, XRI®-841 Severe Duty Motor, 405THFCD9036

W600A, 100 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 405T Frame, TEFC, XRI®-841 Severe Duty Motor, 405THFCD9036

$10,635.35
(No reviews yet) Write a Review
SKU:
W600A
Output HP:
100 Hp
Output KW:
75 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1785 rpm
Frame Size:
405T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
W600A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 100 Hp
Output KW: 75 kW Voltage: 460 V
Speed: 1785 rpm Service Factor: 1.15
Frame: 405T Thermal Protection: No Protection
Efficiency: 95.4 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 113 A
Power Factor: 87 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6316
Opp Drive End Bearing Size: 6314 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 56
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
