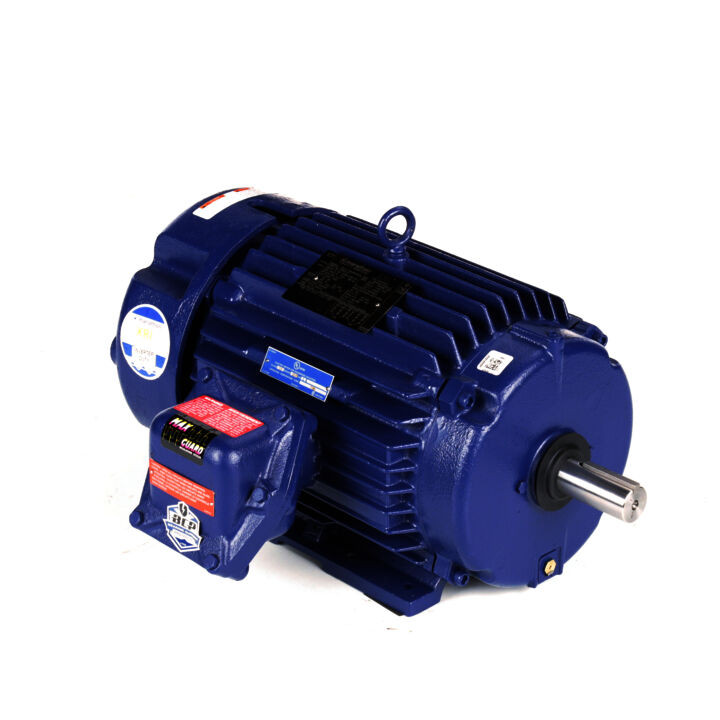

U992B-P, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 215TTGND16539

U992B-P, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 215TTGND16539

$3,044.00
(No reviews yet) Write a Review
SKU:
U992B-P
Output HP:
10 Hp
Output KW:
7.5 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1765 rpm
Frame Size:
215T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
U992B-P.pdf
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 & 7.50 Hp
Output KW: 7.5 & 5.6 kW Voltage: 230/460 & 190/380 V
Speed: 1765 & 1470 rpm Service Factor: 1.15 & 1.15
Frame: 215T Thermal Protection: Thermostat
Efficiency: 91.7 & 90.8 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 26.6/13.3 & 24.8/12.4 A
Power Factor: 76.9 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6208 Enclosure: Explosion Proof Fan cooled
UL: UL Listed; also, UL Certified for Canada CSA: N
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B



!
