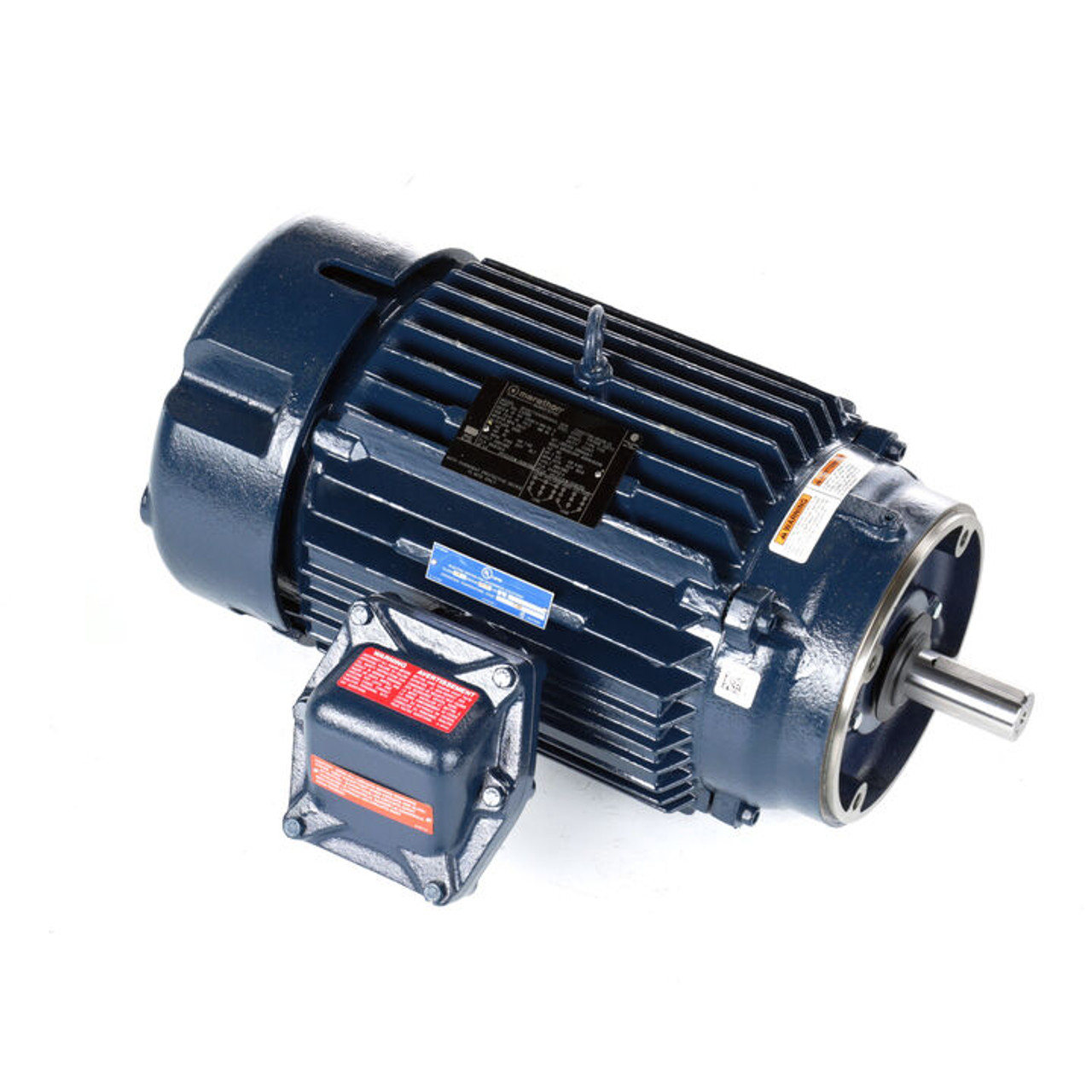

C326B, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215TC Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 215TTGND16029AA

C326B, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215TC Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 215TTGND16029AA

$1,887.95
(No reviews yet) Write a Review
SKU:
C326B
Output HP:
10 & 7.5 Hp
Output KW:
7.5 & 5.6 kW
Voltage:
230/460 & 190/380 V
Phase:
3
Speed (RPM):
1765 & 1470 rpm
Frame Size:
215TC
Mounting:
Round
Enclosure:
Explosion Proof Fan Cooled
Product Drawings1:
C326B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 & 5 Hp
Output KW: 5.6 & 3.7 kW Voltage: 230/460 & 190/380 V
Speed: 1768 & 1475 rpm Service Factor: 1.15 & 1.00
Frame: 213TC Thermal Protection: Thermostat
Efficiency: 91.7 & 90.2 % Ambient Temperature: 50 °C
Frequency: 60 & 50 Hz Current: 19/9.5 & 16.2/8.1 A
Power Factor: 79.3 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6208 Enclosure: Explosion Proof Fan cooled
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C



!
