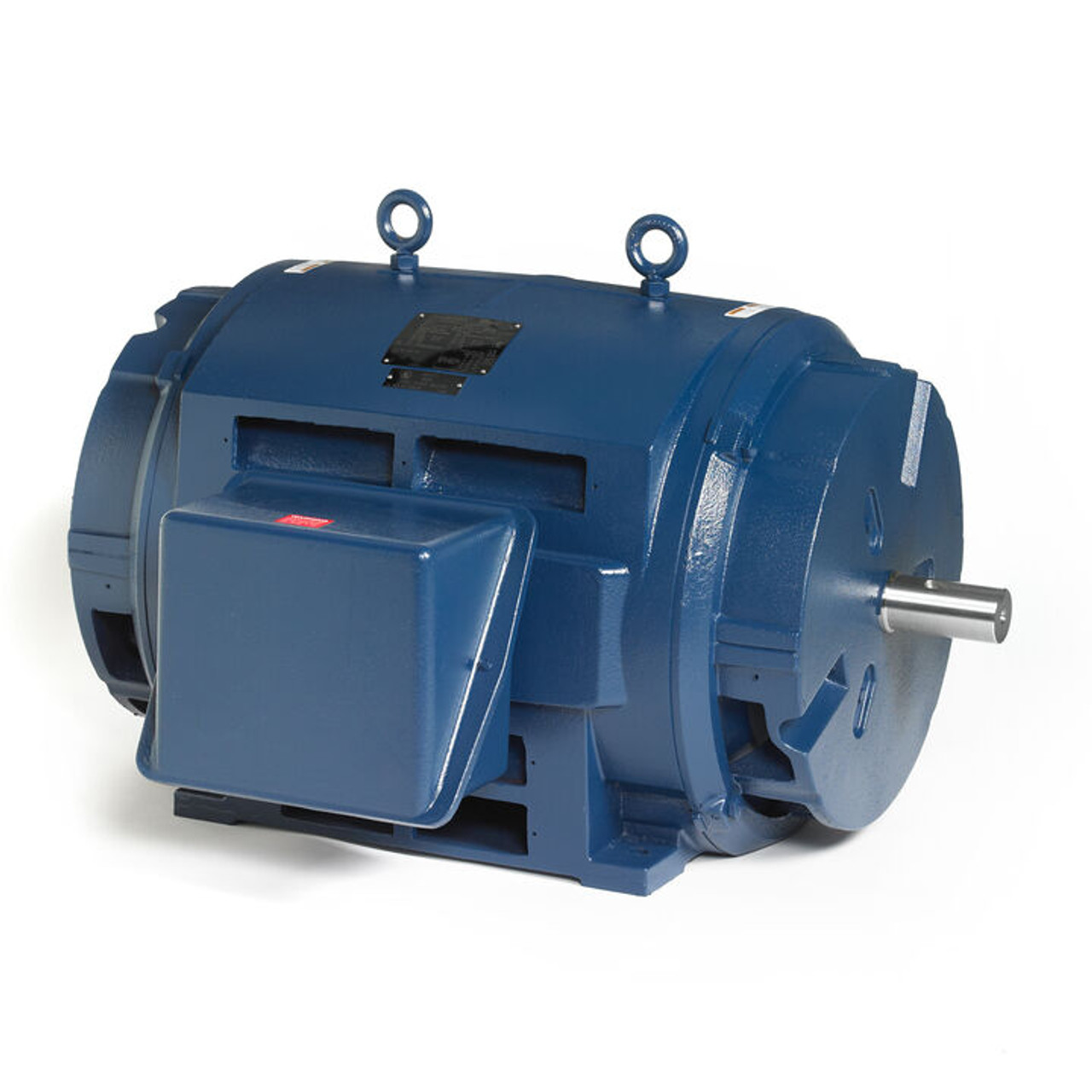

U543, 350 & 300 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 447TS Frame, DP, General Purpose Motor, 447TSTDCD4003

U543, 350 & 300 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 447TS Frame, DP, General Purpose Motor, 447TSTDCD4003

$20,136.10
(No reviews yet) Write a Review
SKU:
U543
Output HP:
350 Hp
Output KW:
260 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
3575 rpm
Frame Size:
447TS
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
U543.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 350 & 300 Hp
Output KW: 260.0 & 224.0 kW Voltage: 460 & 380 V
Speed: 3575 & 2975 rpm Service Factor: 1.15 & 1.15
Frame: 447TS Thermal Protection: No Protection
Efficiency: 95.5 & 95 % Ambient Temperature: 50 °C
Frequency: 60 & 50 Hz Current: 377 & 393 A
Power Factor: 91 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: F Drive End Bearing Size: 6314
Opp Drive End Bearing Size: 6314 Enclosure: Drip Proof
UL: Listed CSA: Y
CE: Y IP Code: 23
Number of Speeds: 1



!
