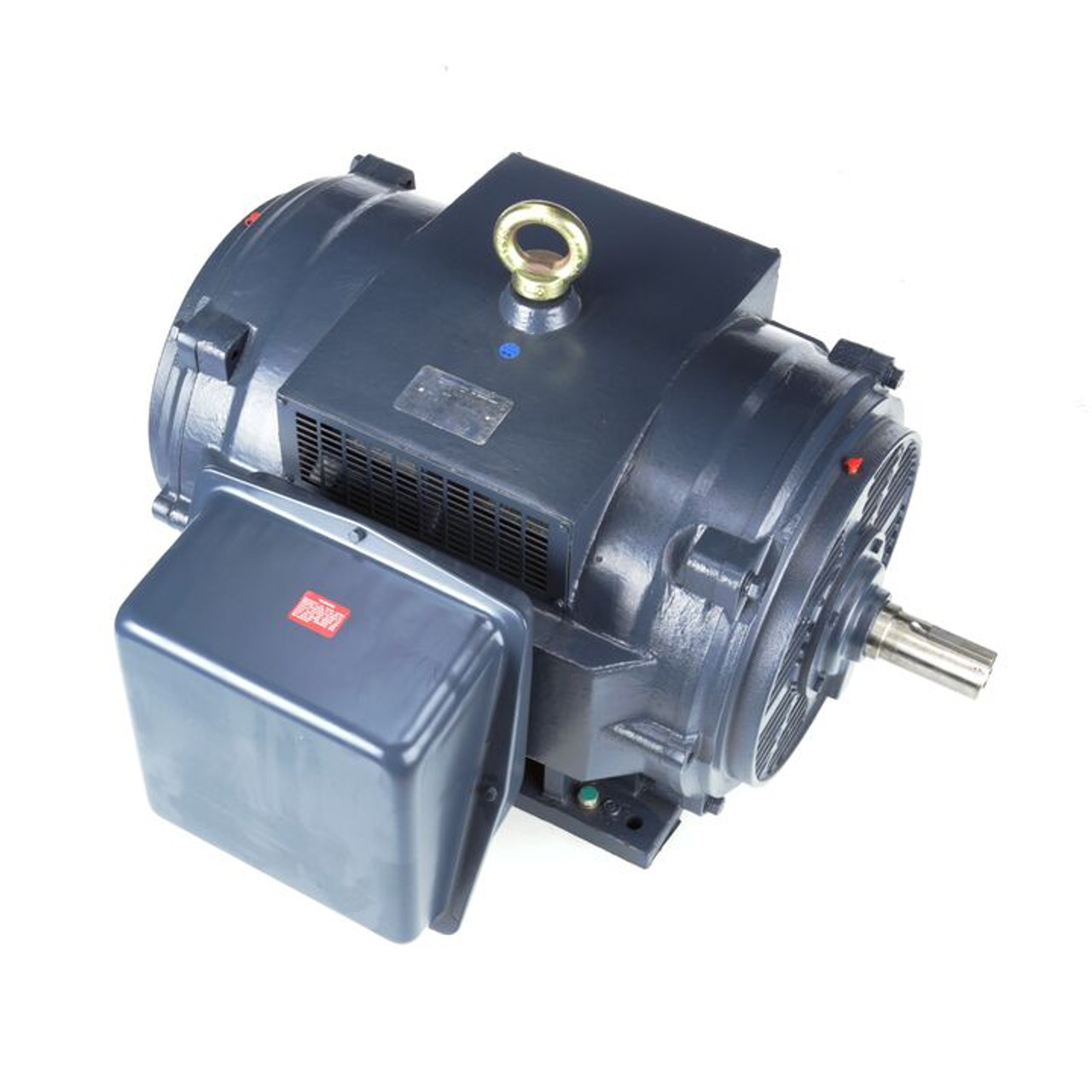

GT00036, 400 & 350 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 449TS Frame, DP, Globetrotter® General Purpose Motor, 449TSTDCD6001

GT00036, 400 & 350 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 449TS Frame, DP, Globetrotter® General Purpose Motor, 449TSTDCD6001

$21,635.48
(No reviews yet) Write a Review
SKU:
GT00036
Output HP:
400 Hp
Output KW:
300 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
3579 rpm
Frame Size:
449TS
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT00036.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 400 & 350 Hp
Output KW: 300.0 & 260.0 kW Voltage: 460 & 380 V
Speed: 3579 & 2977 rpm Service Factor: 1.15 & 1.15
Frame: 449TS Thermal Protection: No Protection
Efficiency: 95.8 & 95.3 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 427 & 453 A
Power Factor: 91.6 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6314
Opp Drive End Bearing Size: 6314 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
