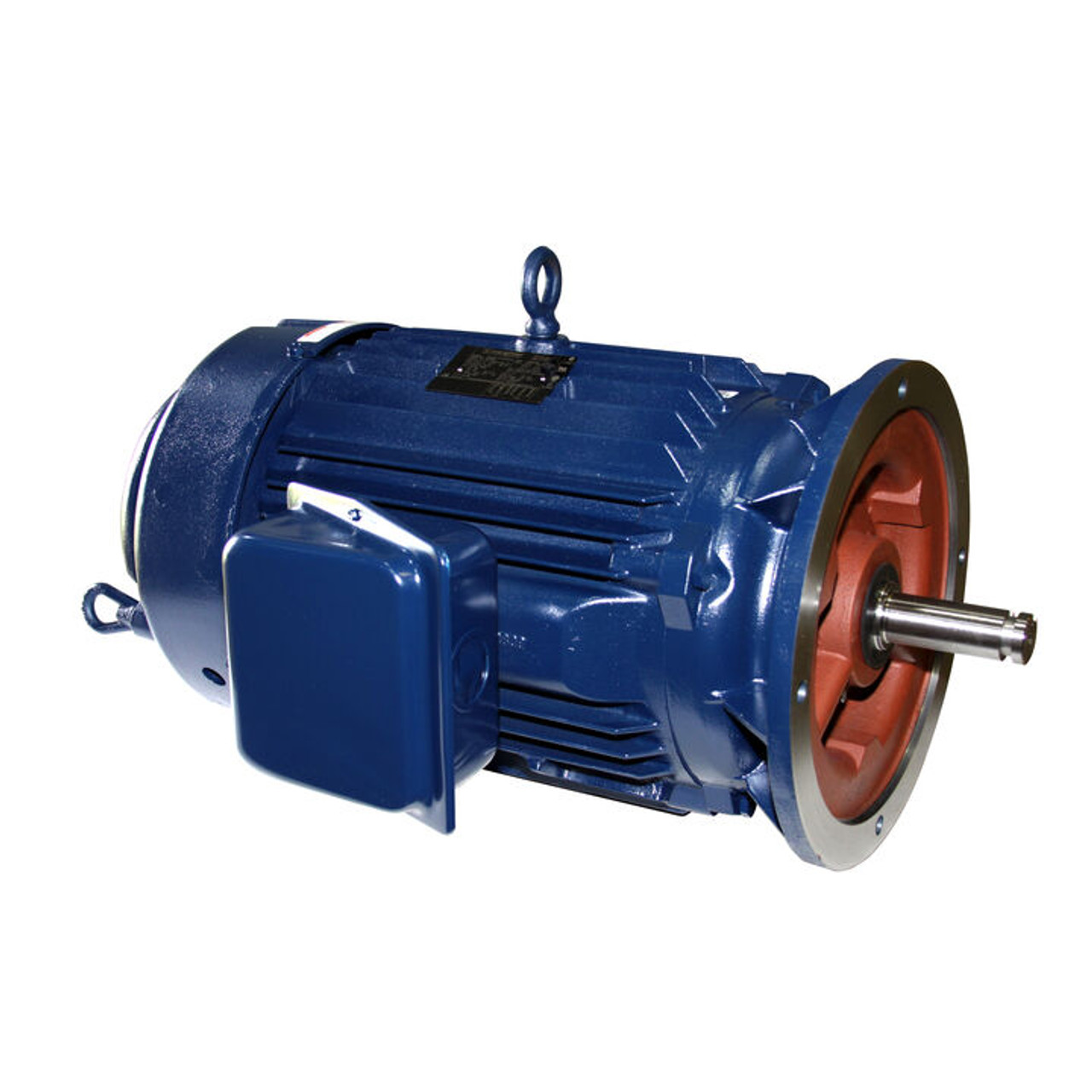

M920B, 100 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 405HPV Frame, TEFC, Vertical Pump Motor, 405TTFS16004

M920B, 100 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, 405HPV Frame, TEFC, Vertical Pump Motor, 405TTFS16004

$13,105.24
(No reviews yet) Write a Review
SKU:
M920B
Output HP:
100 Hp
Output KW:
75 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3565 rpm
Frame Size:
405HPV
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
M920B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 100 Hp
Output KW: 75 kW Voltage: 230/460 V
Speed: 3565 rpm Service Factor: 1.15
Frame: 405HPV Thermal Protection: No Protection
Efficiency: 94.1 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 224.0/112.0 A
Power Factor: 89 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6313 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1



!
