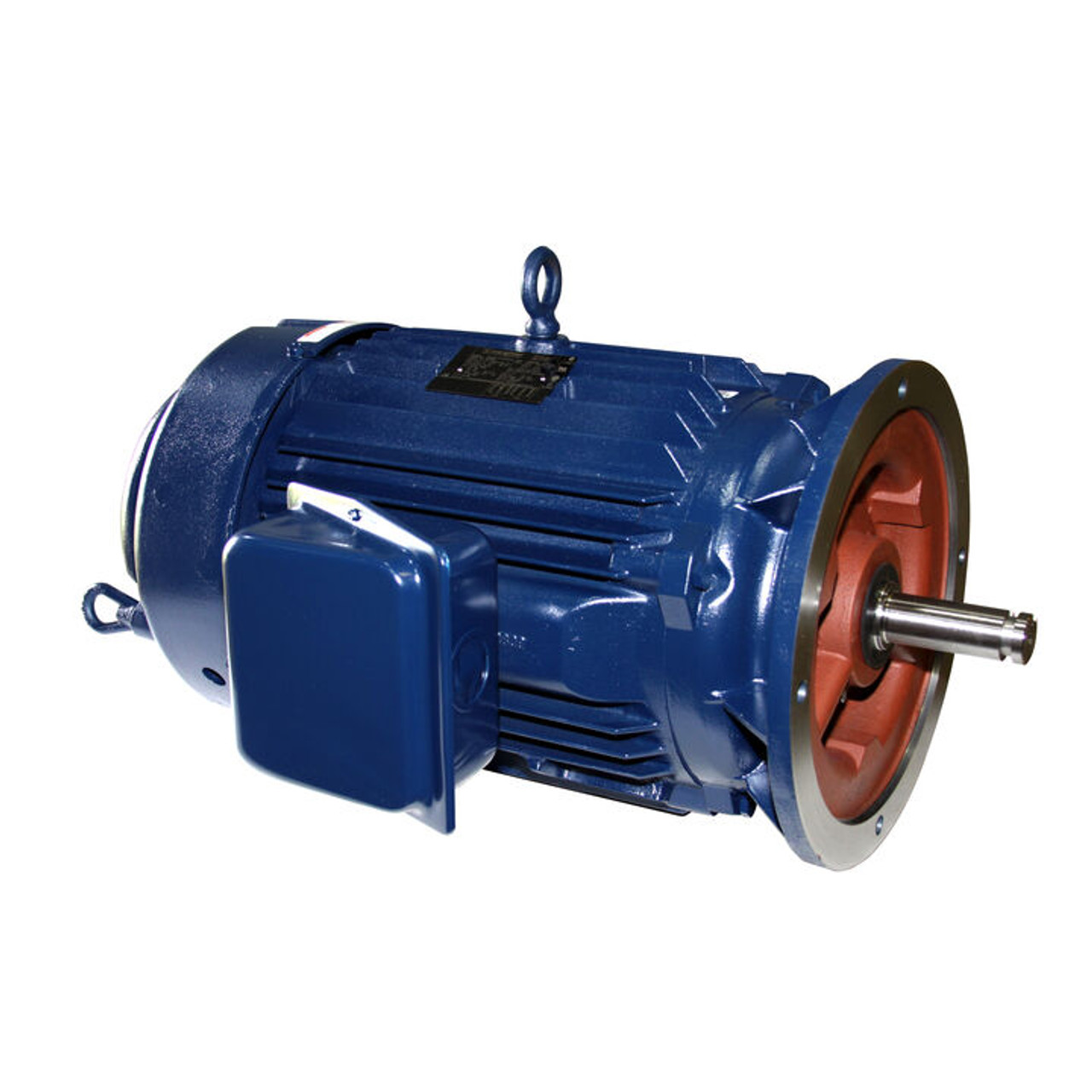

M912B, 60 HP, 3 Ph, 60 Hz, 230/460 V, 3600 & 3600 RPM, 364HPV Frame, TEFC, Vertical Pump Motor, 364TTFS16008

M912B, 60 HP, 3 Ph, 60 Hz, 230/460 V, 3600 & 3600 RPM, 364HPV Frame, TEFC, Vertical Pump Motor, 364TTFS16008

$9,628.85
(No reviews yet) Write a Review
SKU:
M912B
Output HP:
60 Hp
Output KW:
45 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3555 rpm
Frame Size:
364HPV
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
M912B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 60 Hp
Output KW: 45 kW Voltage: 230/460 V
Speed: 3555 rpm Service Factor: 1.15
Frame: 364HPV Thermal Protection: No Protection
Efficiency: 94.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 134.0/67.0 A
Power Factor: 88 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6312 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1



!
