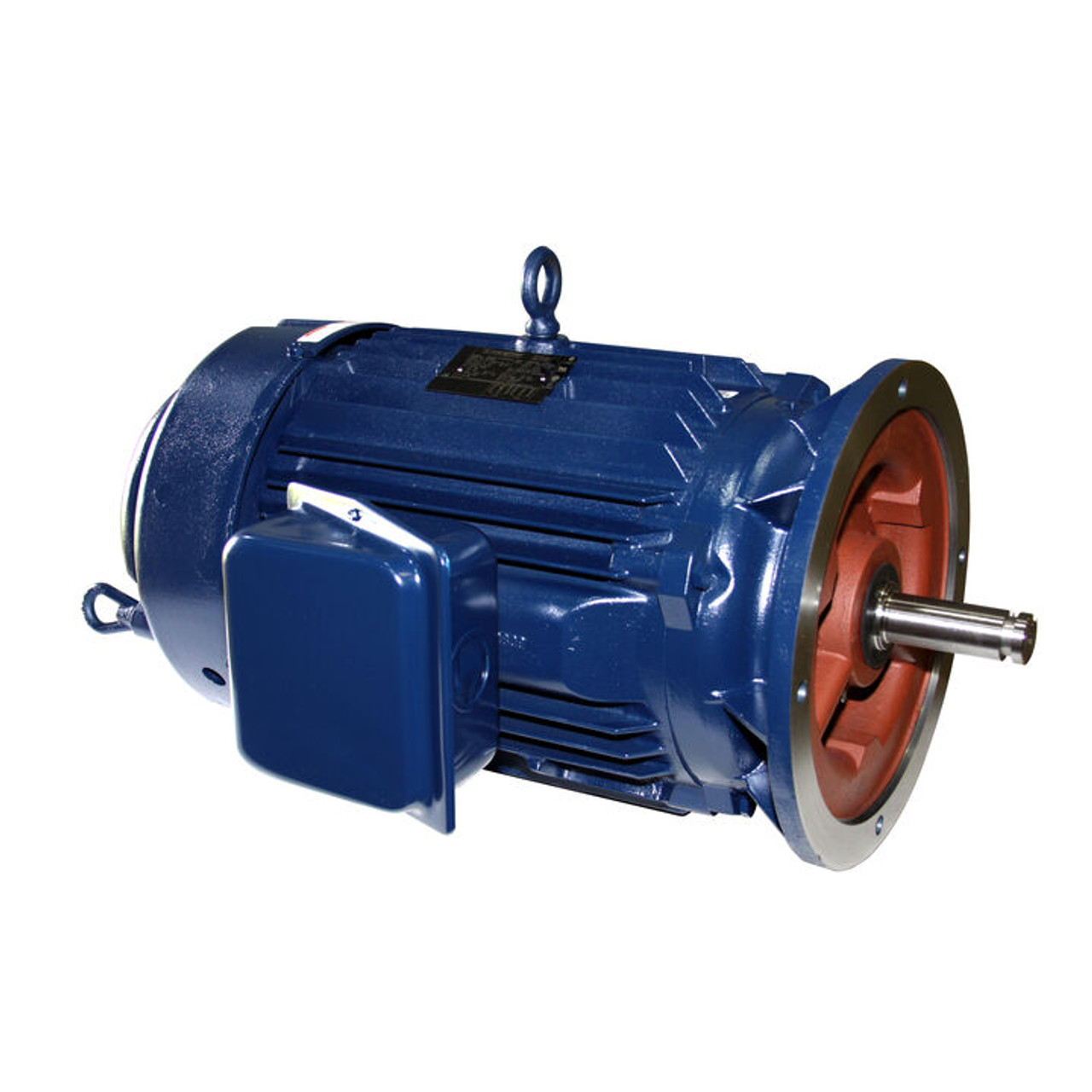

M899B, 25 HP, 3 Ph, 60 Hz, 230/460 V, 900 & 900 RPM, 326HPV Frame, TEFC, Vertical Pump Motor, 326TTFS16106

M899B, 25 HP, 3 Ph, 60 Hz, 230/460 V, 900 & 900 RPM, 326HPV Frame, TEFC, Vertical Pump Motor, 326TTFS16106

$10,389.52
(No reviews yet) Write a Review
SKU:
M899B
Output HP:
25 Hp
Output KW:
18.7 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
882 rpm
Frame Size:
326HPV
Mounting:
Round
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
M899B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 25 Hp
Output KW: 18.7 kW Voltage: 230/460 V
Speed: 882 rpm Service Factor: 1.15
Frame: 326HPV Thermal Protection: No Protection
Efficiency: 90.2 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 73.0/36.5 A
Power Factor: 70 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6311 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1



!
