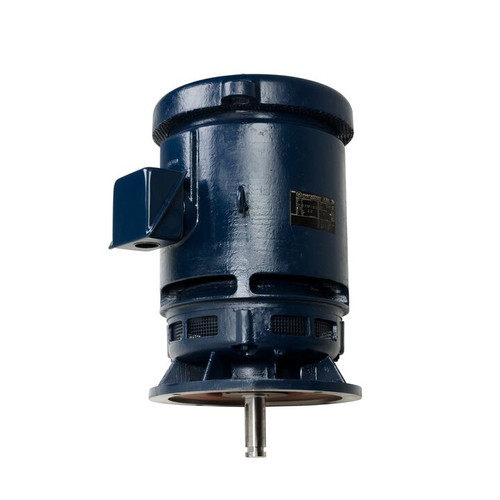

M825B, 30 HP, 3 Ph, 60 Hz, 230/460 V, 3600 & 3600 RPM, 284HPV Frame, DP, Vertical Pump Motor, 284TTDN16007

M825B, 30 HP, 3 Ph, 60 Hz, 230/460 V, 3600 & 3600 RPM, 284HPV Frame, DP, Vertical Pump Motor, 284TTDN16007

$4,153.49
(No reviews yet) Write a Review
SKU:
M825B
Output HP:
30 Hp
Output KW:
22.4 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3552 rpm
Frame Size:
284HPV
Mounting:
Round
Enclosure:
Drip Proof
Product Drawings1:
M825B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 30 Hp
Output KW: 22.4 kW Voltage: 230/460 V
Speed: 3552 rpm Service Factor: 1.15
Frame: 284HPV Thermal Protection: No Protection
Efficiency: 93.6 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 68.0/34.0 A
Power Factor: 88 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6311 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 23
Number of Speeds: 1



!
