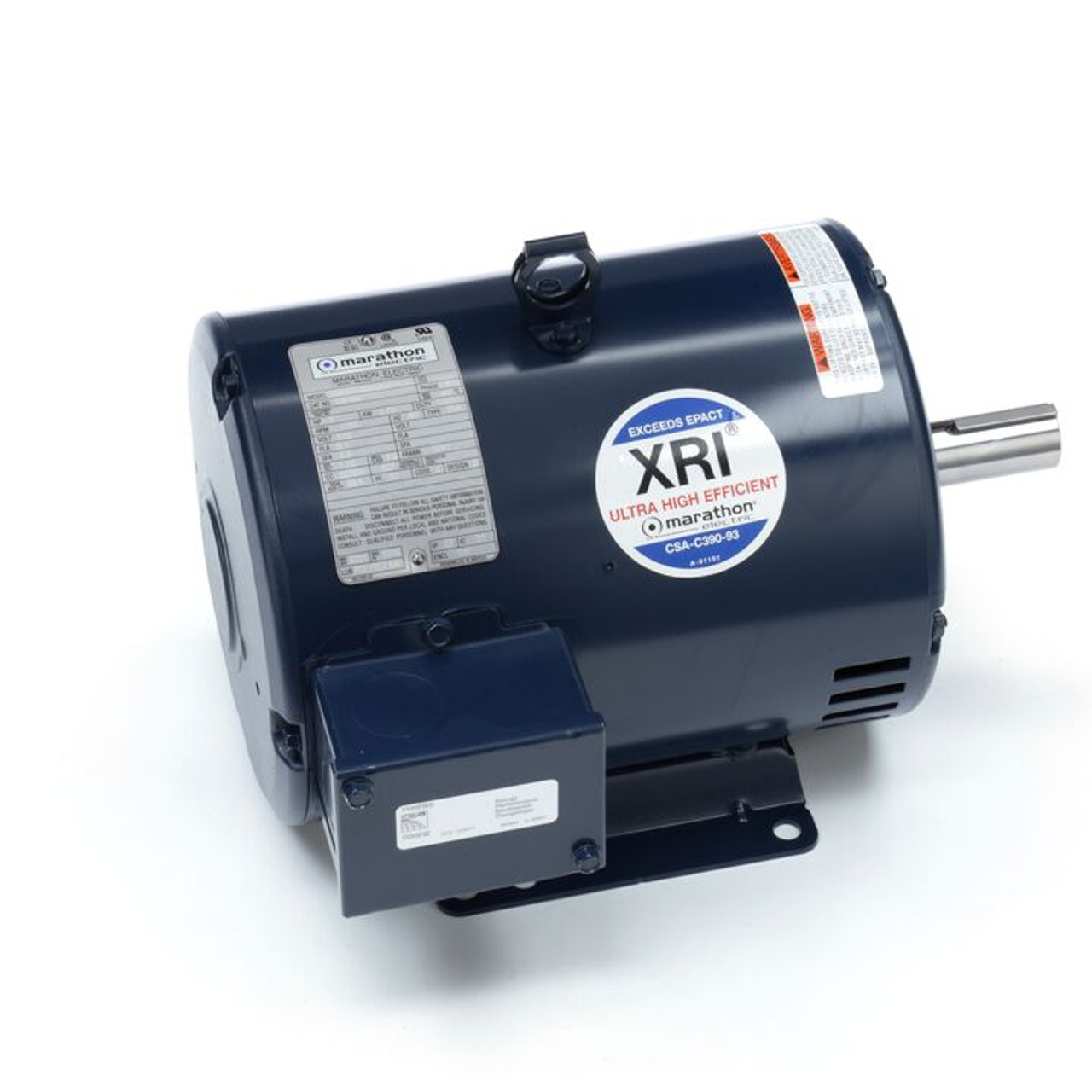

H187B, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 900 RPM, 256T Frame, DP, XRI® General Purpose General Purpose Motor, 256TTDN16101

H187B, 7.50 HP, 3 Ph, 60 Hz, 230/460 V, 900 RPM, 256T Frame, DP, XRI® General Purpose General Purpose Motor, 256TTDN16101

$2,150.86
(No reviews yet) Write a Review
SKU:
H187B
Output HP:
7.5 Hp
Output KW:
5.6 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
875 rpm
Frame Size:
256T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
H187B.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 7.50 Hp
Output KW: 5.6 kW Voltage: 230/460 V
Speed: 875 rpm Service Factor: 1.15
Frame: 256T Thermal Protection: No Protection
Efficiency: 89.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 23.0/11.5 A
Power Factor: 70 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: F Drive End Bearing Size: 6309
Opp Drive End Bearing Size: 6208 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
