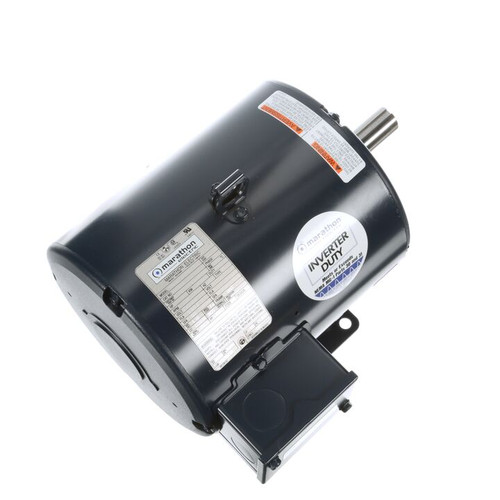

H183A, 1.50 HP, 3 Ph, 60 Hz, 230/460 V, 900 RPM, 184T Frame, DP, XRI® General Purpose General Purpose Motor, 184TTDW7101

H183A, 1.50 HP, 3 Ph, 60 Hz, 230/460 V, 900 RPM, 184T Frame, DP, XRI® General Purpose General Purpose Motor, 184TTDW7101

$708.82
(No reviews yet) Write a Review
SKU:
H183A
Output HP:
1.5 Hp
Output KW:
1.1 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
865 rpm
Frame Size:
184T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
H183A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 1.50 Hp
Output KW: 1.1 kW Voltage: 230/460 V
Speed: 865 rpm Service Factor: 1.15
Frame: 184T Thermal Protection: No Protection
Efficiency: 77.1 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.6/2.8 A
Power Factor: 65 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6205 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
