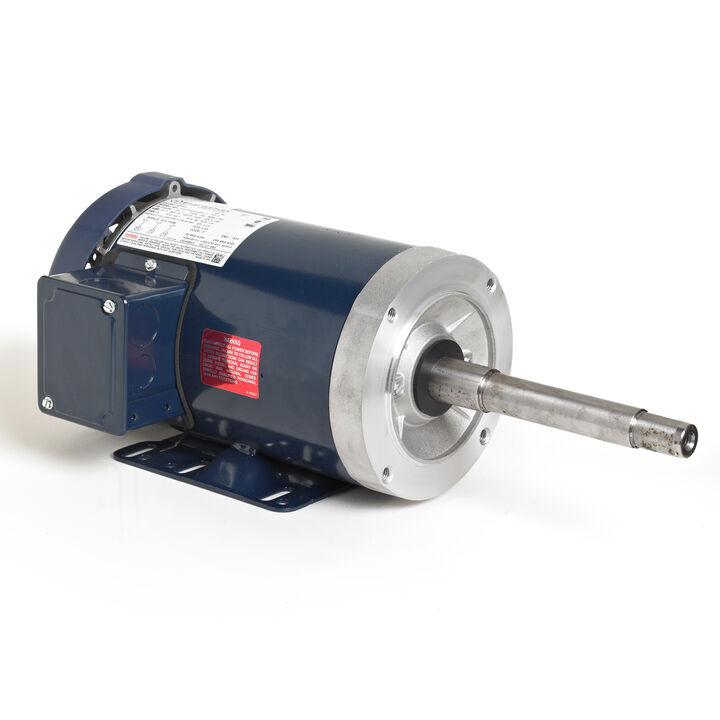

GT3508A, 2 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 184JP Frame, TEFC, Globetrotter® Close-Coupled Pump Motor, 184TTFBD6095

GT3508A, 2 HP, 3 Ph, 60 Hz, 575 V, 1200 & 1200 RPM, 184JP Frame, TEFC, Globetrotter® Close-Coupled Pump Motor, 184TTFBD6095

$760.06
(No reviews yet) Write a Review
SKU:
GT3508A
Output HP:
2 Hp
Output KW:
1.5 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
1173 rpm
Frame Size:
184JP
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT3508A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 2 Hp
Output KW: 1.5 kW Voltage: 575 V
Speed: 1173 rpm Service Factor: 1.15
Frame: 184JP Thermal Protection: No Protection
Efficiency: 88.5 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.5 A
Power Factor: 70 Duty: Continuous
Insulation Class: F Design Code: A
KVA Code: M Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6205 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
