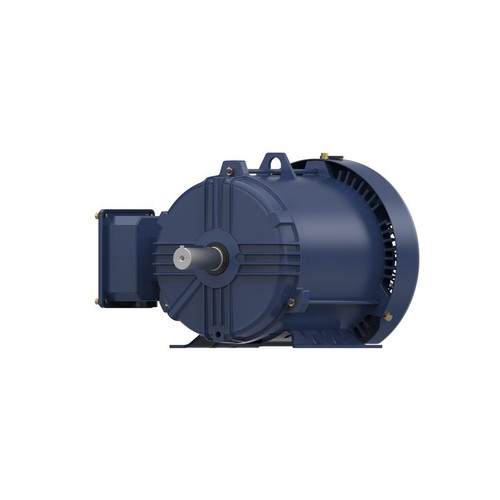

GT1512, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184T Frame, TEFC, Globetrotter® General Purpose Motor, 184TTFBD6002

GT1512, 5 & 3 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 184T Frame, TEFC, Globetrotter® General Purpose Motor, 184TTFBD6002

$586.21
(No reviews yet) Write a Review
SKU:
GT1512
Output HP:
5 Hp
Output KW:
3.7 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3525 rpm
Frame Size:
184T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT1512.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 5 & 3 Hp
Output KW: 3.7 & 2.2 kW Voltage: 230/460 & 190/380 V
Speed: 3525 & 2945 rpm Service Factor: 1.15 & 1.15
Frame: 184T Thermal Protection: No Protection
Efficiency: 88.5 & 87.1 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 12.4/6.2 & 9.6/4.8 A
Power Factor: 86 Duty: Continuous
Insulation Class: F Design Code: A
KVA Code: K Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6205 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
