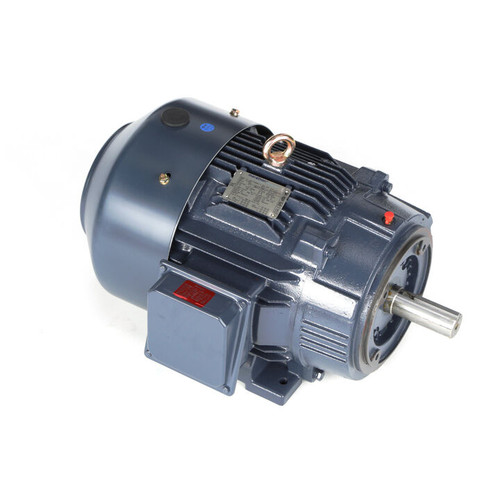

GT1509, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 182T Frame, TEFC, Globetrotter® General Purpose Motor, 182TTFBD6002

GT1509, 3 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 3600 & 3000 RPM, 182T Frame, TEFC, Globetrotter® General Purpose Motor, 182TTFBD6002

$513.01
(No reviews yet) Write a Review
SKU:
GT1509
Output HP:
3 Hp
Output KW:
2.2 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
3530 rpm
Frame Size:
182T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT1509.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 3 & 2 Hp
Output KW: 2.2 & 1.5 kW Voltage: 230/460 & 190/380 V
Speed: 3530 & 2944 rpm Service Factor: 1.15 & 1.15
Frame: 182T Thermal Protection: No Protection
Efficiency: 86.5 & 84.9 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 8/4 & 6.8/3.4 A
Power Factor: 82 Duty: Continuous
Insulation Class: F Design Code: A
KVA Code: L Drive End Bearing Size: 6206
Opp Drive End Bearing Size: 6205 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 43
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
