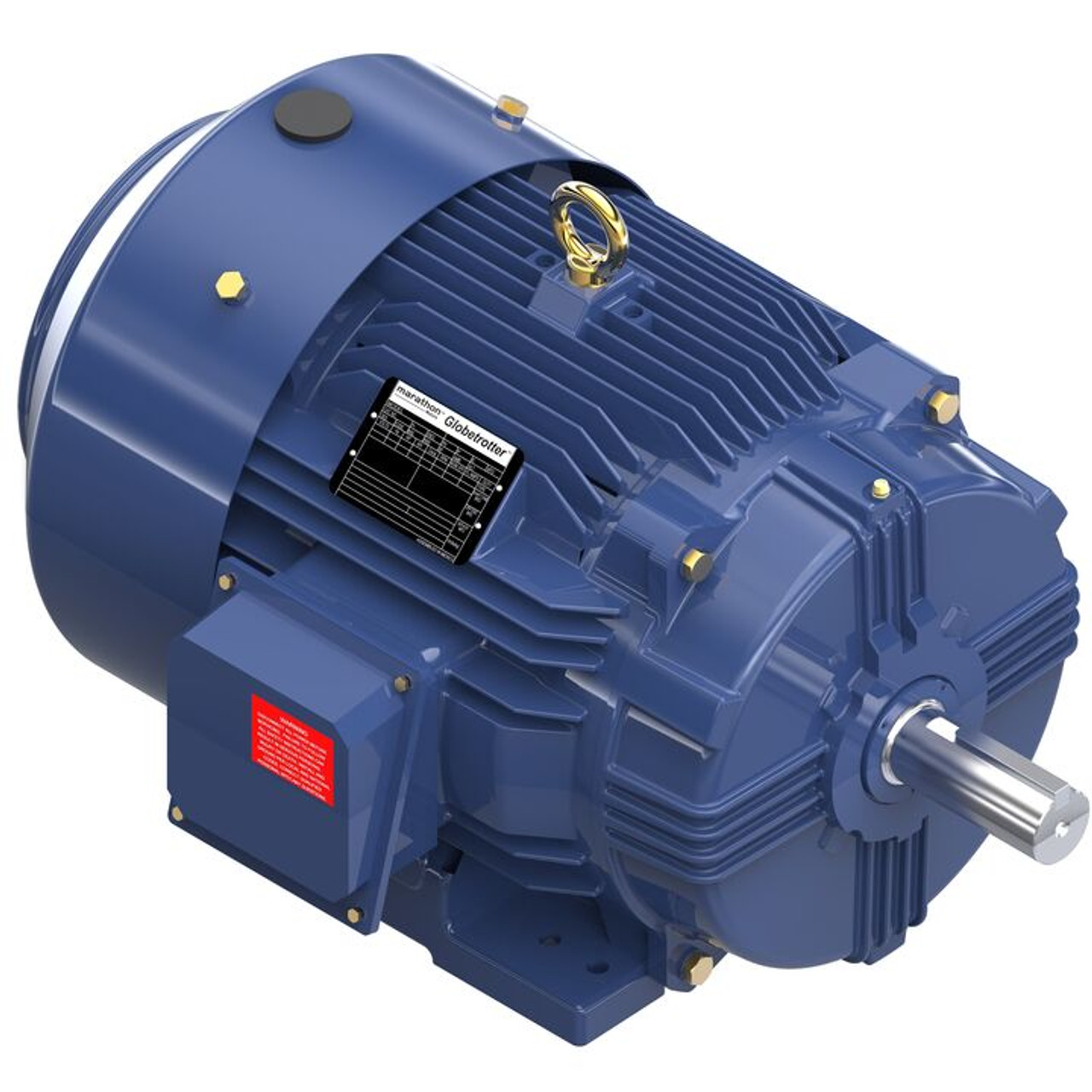

GT1123A, 15 HP, 3 Ph, 60 Hz, 575 V, 1200 RPM, 284T Frame, TEFC, Globetrotter® General Purpose Motor, 284TTFCD6080

GT1123A, 15 HP, 3 Ph, 60 Hz, 575 V, 1200 RPM, 284T Frame, TEFC, Globetrotter® General Purpose Motor, 284TTFCD6080

$2,138.05
(No reviews yet) Write a Review
SKU:
GT1123A
Output HP:
15 Hp
Output KW:
11.2 kW
Voltage:
575 V
Phase:
3
Speed (RPM):
1182 rpm
Frame Size:
284T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT1123A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 15 Hp
Output KW: 11.2 kW Voltage: 575 V
Speed: 1182 rpm Service Factor: 1.15
Frame: 284T Thermal Protection: No Protection
Efficiency: 91.7 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 16 A
Power Factor: 77.5 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6211 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B



!
