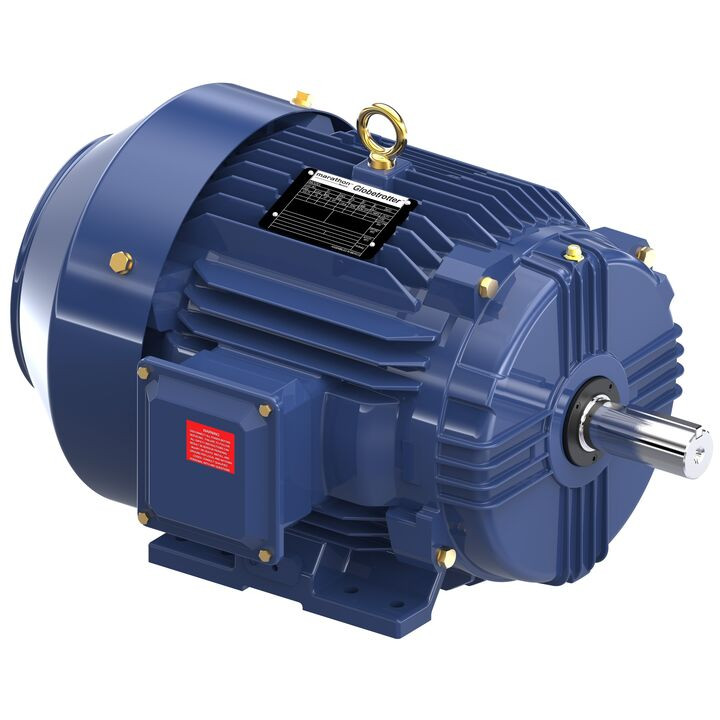

GT1019A-P, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215T Frame, TEFC, Globetrotter® General Purpose Motor, 215TTFCD6070

GT1019A-P, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215T Frame, TEFC, Globetrotter® General Purpose Motor, 215TTFCD6070

Marathon Electric

$1,163.27
(No reviews yet) Write a Review
SKU:
GT1019A-P
Output HP:
10 Hp
Output KW:
7.5 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1762 rpm
Frame Size:
215T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
GT1019A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 & 7.50 Hp
Output KW: 7.5 & 5.6 kW Voltage: 230/460 & 190/380 V
Speed: 1762 & 1465 rpm Service Factor: 1.15 & 1.15
Frame: 215T Thermal Protection: No Protection
Efficiency: 91.7 & 91 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 25/12.5 & 23.2/11.6 A
Power Factor: 81.3 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6308
Opp Drive End Bearing Size: 6208 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
