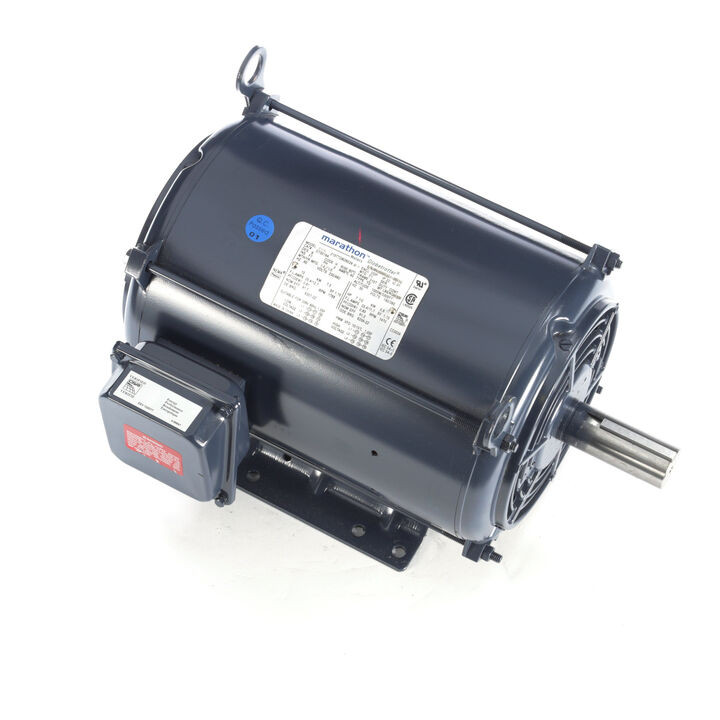

GT0019A-P, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215T Frame, DP, Globetrotter® General Purpose Motor, 215TTDBD6070

GT0019A-P, 10 & 7.50 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 215T Frame, DP, Globetrotter® General Purpose Motor, 215TTDBD6070

$1,021.14
(No reviews yet) Write a Review
SKU:
GT0019A-P
Output HP:
10 Hp
Output KW:
7.5 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1768 rpm
Frame Size:
215T
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT0019A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 10 & 7.50 Hp
Output KW: 7.5 & 5.6 kW Voltage: 230/460 & 190/380 V
Speed: 1768 & 1470 rpm Service Factor: 1.15 & 1.15
Frame: 215T Thermal Protection: No Protection
Efficiency: 91.7 & 91 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 25.4/12.7 & 23.4/11.7 A
Power Factor: 80.1 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: H Drive End Bearing Size: 6307
Opp Drive End Bearing Size: 6206 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
