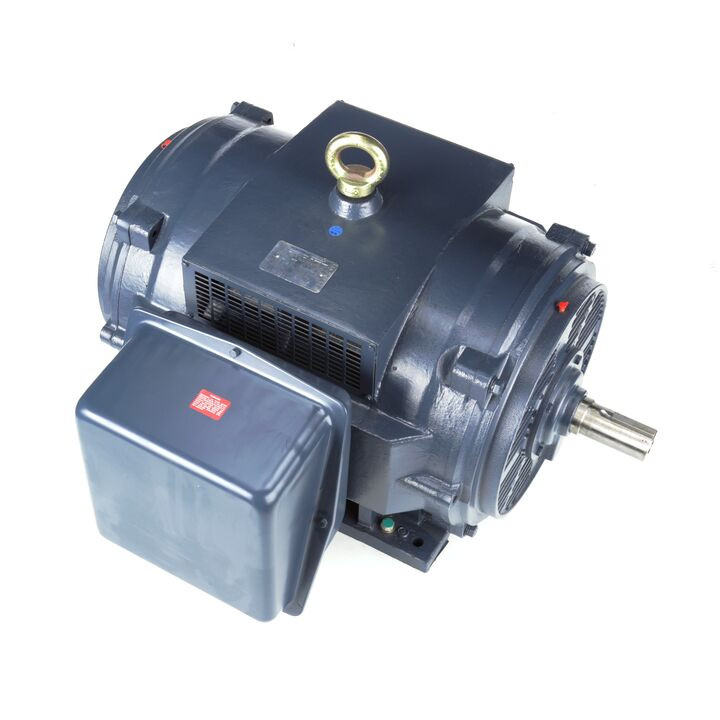

GT00017, 250 & 200 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 445TS Frame, DP, Globetrotter® General Purpose Motor, 445TSTDCD6001

GT00017, 250 & 200 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 445TS Frame, DP, Globetrotter® General Purpose Motor, 445TSTDCD6001

$15,395.18
(No reviews yet) Write a Review
SKU:
GT00017
Output HP:
250 Hp
Output KW:
18.7 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
3577 rpm
Frame Size:
445TS
Mounting:
Rigid Base
Enclosure:
Drip Proof
Product Drawings1:
GT00017.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 250 & 200 Hp
Output KW: 187.0 & 149.0 kW Voltage: 460 & 380 V
Speed: 3577 & 2977 rpm Service Factor: 1.15 & 1.15
Frame: 445TS Thermal Protection: No Protection
Efficiency: 95 & 94.8 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 270 & 262 A
Power Factor: 91 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6314
Opp Drive End Bearing Size: 6314 Enclosure: Drip Proof
UL: Recognized CSA: Y
CE: Y IP Code: 22
Number of Speeds: 1



!
