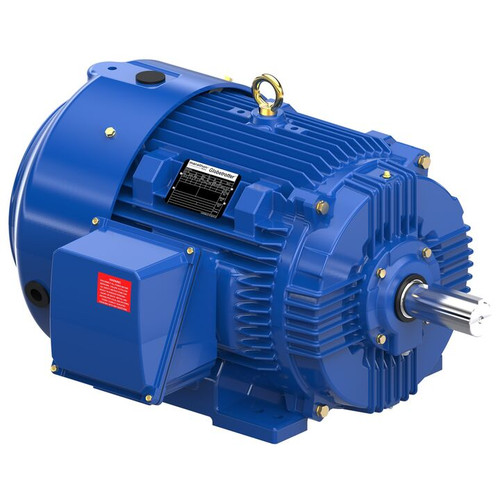

E624A-P, 40 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 324T Frame, TEFC, XRI®-SD Severe Duty Motor, 324TTFCD16860

E624A-P, 40 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 324T Frame, TEFC, XRI®-SD Severe Duty Motor, 324TTFCD16860

$4,163.86
(No reviews yet) Write a Review
SKU:
E624A-P
Output HP:
40 Hp
Output KW:
30 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1782 rpm
Frame Size:
324T
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
E624A-P.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 40 Hp
Output KW: 30 kW Voltage: 460 V
Speed: 1782 rpm Service Factor: 1.15
Frame: 324T Thermal Protection: No Protection
Efficiency: 94.1 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 47.5 A
Power Factor: 84 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6312
Opp Drive End Bearing Size: 6212 Enclosure: Totally Enclosed Fan Cooled
UL: Recognized CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1



!
