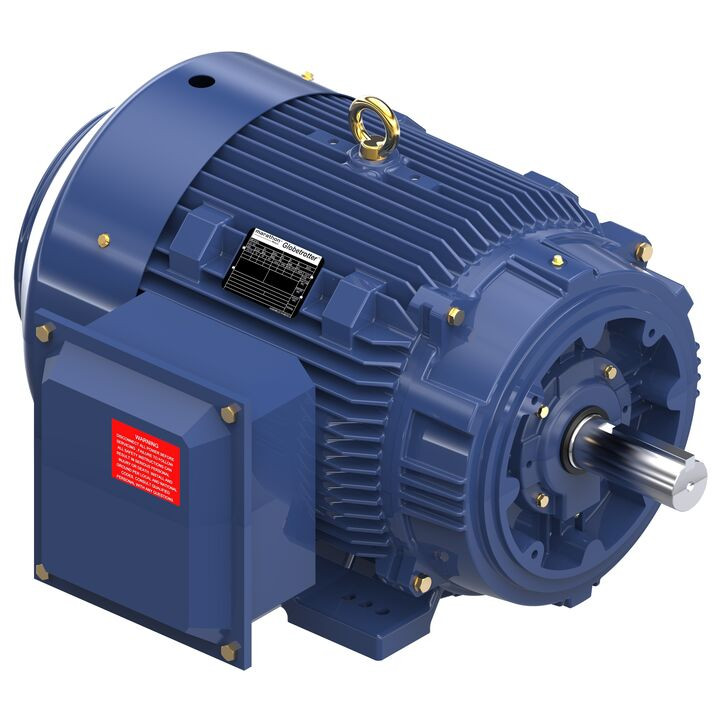

E060, 60 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 364TC Frame, TEFC, XRI®-SD Severe Duty Motor, 364TTFCD6540

E060, 60 HP, 3 Ph, 60 Hz, 460 V, 1800 RPM, 364TC Frame, TEFC, XRI®-SD Severe Duty Motor, 364TTFCD6540

$7,122.97
(No reviews yet) Write a Review
SKU:
E060
Output HP:
60 Hp
Output KW:
45 kW
Voltage:
460 V
Phase:
3
Speed (RPM):
1780 rpm
Frame Size:
364TC
Mounting:
Rigid Base
Enclosure:
Totally Enclosed Fan Cooled
Product Drawings1:
E060.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 60 Hp
Output KW: 45 kW Voltage: 460 V
Speed: 1780 rpm Service Factor: 1.15
Frame: 364TC Thermal Protection: No Protection
Efficiency: 95 % Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 68 A
Power Factor: 87.2 Duty: Continuous
Insulation Class: H Design Code: B
KVA Code: G Drive End Bearing Size: 6313
Opp Drive End Bearing Size: 6213 Enclosure: Totally Enclosed Fan Cooled
UL: Listed CSA: Y
CE: Y IP Code: 55
Number of Speeds: 1 Hazardous Location: DIVISION 2 T2B
!
