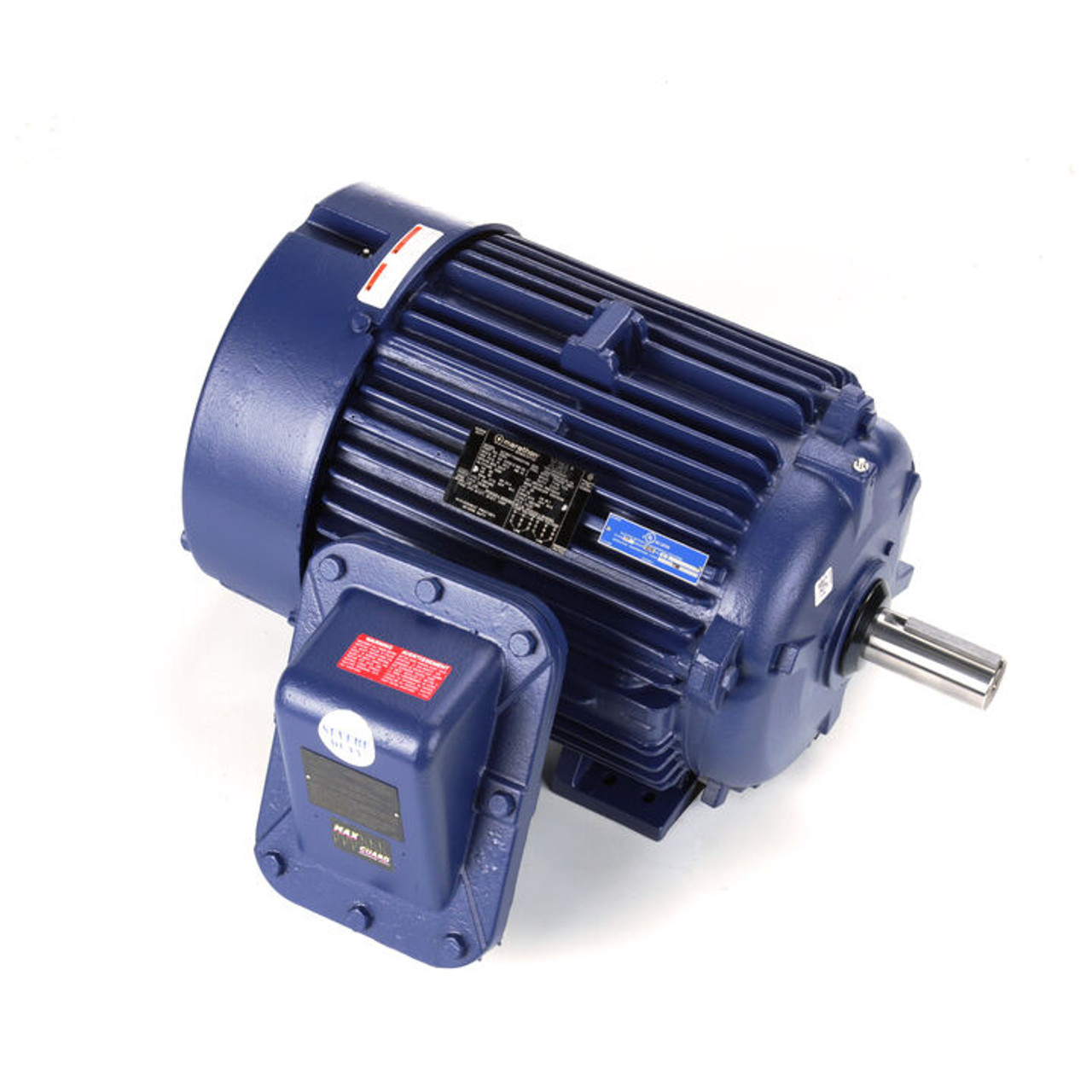

E564A, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 286TTGCD6526

E564A, 30 & 25 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 286T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 286TTGCD6526

$3,663.66
(No reviews yet) Write a Review
SKU:
E564A
Output HP:
30 Hp
Output KW:
22.4 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1770 rpm
Frame Size:
286T
Mounting:
Rigid Base
Enclosure:
Explosion Proof Fan Cooled
Product Drawings1:
E564A.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 30 & 25 Hp
Output KW: 22.4 & 18.7 kW Voltage: 230/460 & 190/380 V
Speed: 1770 & 1470 rpm Service Factor: 1.00 & 1.00
Frame: 286T Thermal Protection: Thermostat
Efficiency: 93.6 & 92.7 % Ambient Temperature: 50 °C
Frequency: 60 & 50 Hz Current: 71/35.5 & 71/35.5 A
Power Factor: 84 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6210 Enclosure: Explosion Proof Fan cooled
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C
!
