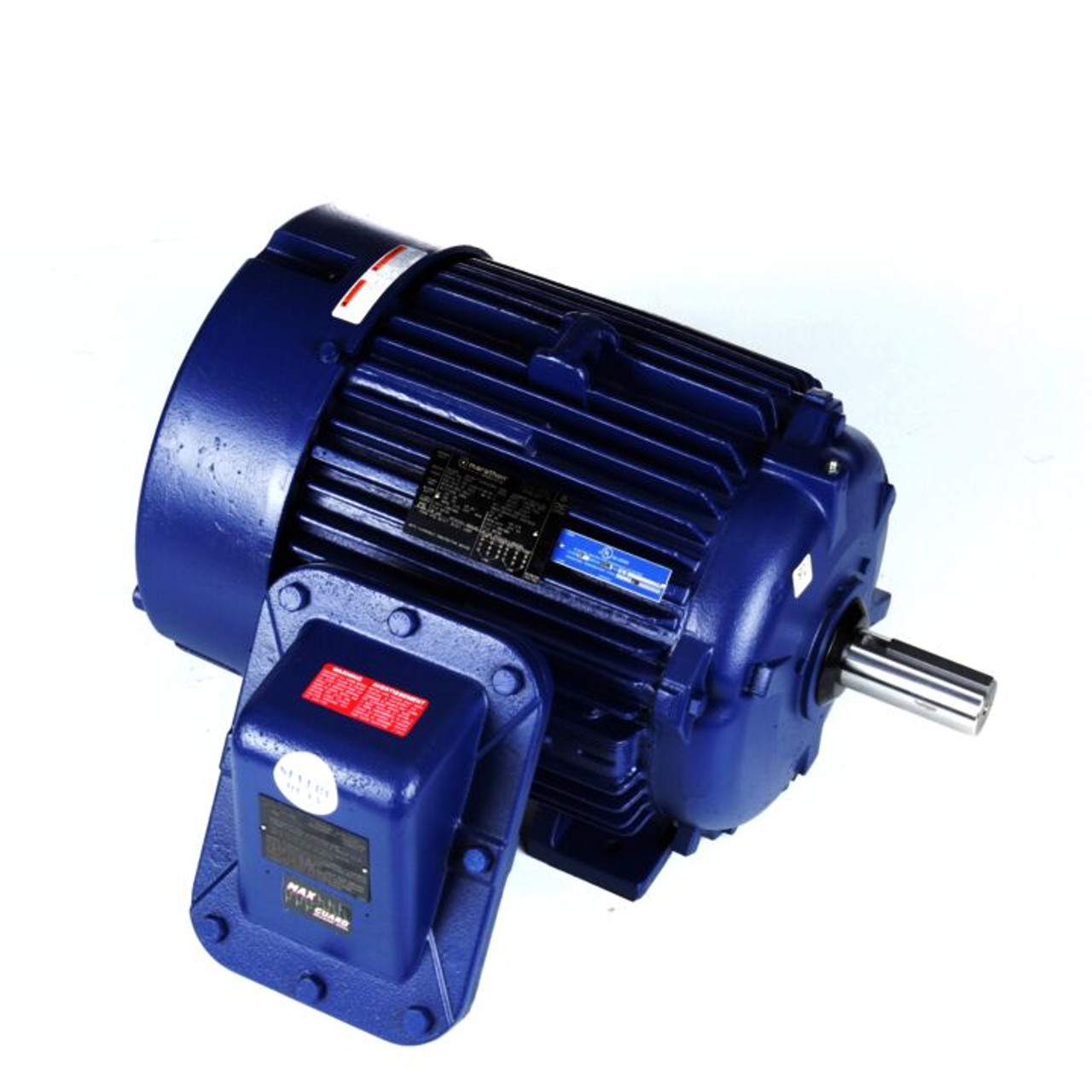

E547, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 284T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 284TTGN6533

E547, 25 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 284T Frame, EPFC, Hazardous Duty® Explosion Proof Motor, 284TTGN6533

$3,314.13
(No reviews yet) Write a Review
SKU:
E547
Output HP:
25 Hp
Output KW:
18.7 kW
Voltage:
230/460 V
Phase:
3
Speed (RPM):
1772 rpm
Frame Size:
284T
Mounting:
Rigid Base
Enclosure:
Explosion Proof Fan Cooled
Product Drawings1:
E547.pdf
Manufacture:
Marathon
Adding to cart… The item has been added

Nameplate Specifications

Phase: 3 Output HP: 25 & 20 Hp
Output KW: 18.7 & 14.9 kW Voltage: 230/460 & 190/380 V
Speed: 1772 & 1472 rpm Service Factor: 1.15 & 1.15
Frame: 284T Thermal Protection: Thermostat
Efficiency: 93.6 & 93 % Ambient Temperature: 40 °C
Frequency: 60 & 50 Hz Current: 62/31 & 60/30 A
Power Factor: 81 Duty: Continuous
Insulation Class: F Design Code: B
KVA Code: G Drive End Bearing Size: 6311
Opp Drive End Bearing Size: 6210 Enclosure: Explosion Proof Fan cooled
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Number of Speeds: 1 Hazardous Location: DIV 1 EXP PROOF CL I GR CD CL II GR FG T3B



!
